Flexible Conduit and Connector For Offshore, Petrochemical & Heavy Industry Electric Wirings Delikon brings great experience and flexible conduits systems to Heavy Industry & Offshore Applications. These applications require the emphasis on safety, security, and longevity. It also requires ease of maintenance. EMI/RFI Shielding Conduits Typical Applications or by IP Ratings
Delikon Stainless Steel Liquid Tight Conduit, Stainless Steel Liquid Tight Connector, Heavy Series Stainless Steel Connector for shipboard wiring, offshore platforms, and other at sea installations for oil drilling and production
Delikon supplies a comprehensive range of marine offshore heavy series stainless steel flexible conduit and heavy series stainless steel connector for shipboard wiring, offshore platforms, and other at sea installations for oil drilling and production. Delikon heavy series stainless steel connector is corrosion resistant as well as suitable for high temperature applications. These stainless steel flexible conduit systems protect power, control, signal, instrumentation and communication ship wiring applications. Delikon heavy series stainless steel liquid tight conduit and heavy series stainless steel connector are designed to perform in extremes of weather, and to be resistant to adverse elements such as humidity, oil, acid, mud and salt water, as are prevalent in most marine and offshore operational environments. Delikon Automation Flexible Conduit SystemDelikon High Temperature EMI RFI ESD Shielding Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit and Swivel Heavy Series Stainless Steel Connector protects cables of Burner Controls, Flame Scanners, Spark Igniters and Gas Pilots
Delikon High Temperature flexible conduit systems are used extensively in REFINERIES and PETROCHEMICAL plants around the globe. Delikon High Temperature Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit and Swivel Heavy Series Stainless Steel Connector protects the power and control cables of Burner Controls, Flame Scanners, Spark Igniters and Gas Pilots, ensuring safely starting and controlling many various pieces of fired equipment at plants just like yours.
Delikon Overbraided Flexible Conduit systems for petrochemical industry cable protections | |
Flexible
Metallic Liquidtight & Waterproof Conduits These metallic liquidtight and waterproof conduits are used to protect the vital network of cables that transfer information and electricity. They combines the value-added benefits of durability, chemical resistance, waterproof connections, ease of installation, and reduced friction all in one cost-effective system. Braided-shield Flexible Metal Conduits Braided-shield flexible conduit provides excellent Radio Frequency, as well as mechanical protection, resulting in improved data transmission. |
|
Heavy Industry |
PVC Jacketed Flexible Metal Conduit, Water Proof IP54 Model: YF-707 |
IP 54 |
A unique vacuum extrusion process allows this flexible metal conduit to have a thin PVC jacket which does not restrict the great flexibility characteristics of the inner core. It is suitable for use in both static applications where a tight bend diameter is needed and in dynamic use such as machining centers and robotics. |
Liquid Tight Flexible Metal Conduit IP67 Model: YF-706 |
|
Flexible, sleek, with increased IP ratings, Liquid-tight flexible metallic conduit (LFMC) is suitable for use in a variety of environments and applications from general purpose wiring in wet or damp locations, to direct burial and in concrete embedment, to raised computer room floors and site lighting jobs. |
Thermoplastic Rubber Coated Steel Liquid Tight Conduit IP67 Model: YF-906 |
|
For Extreme
Temperature Environments: -40C to +140C Type YF-906 Thermoplastic Rubber Covered Steel Liquid Tight Conduit is well suited for exposure to extreme climatic conditions. It is also widely used on industrial process equipment such as Annealing Ovens, Lumber Kilns, Foundries, Refrigeration, etc. It is a conduit designed to withstand an extreme temperature range. Used in situations where concerns of resistance to temperature exposure exist. These include heavy outdoor equipment, boilers, furnaces and sub-zero areas. |
Braided Flexible Steel Conduit, Water Proof IP54 Model: YF-704 |
Clean data transmission in a noisy environment is an ever increasing requirement on today's crowded factory floors. Braided flexible steel conduit systems provide excellent EMI and RFI shielding, as well as mechanical protection, and water resistance, resulting in improved data transmission for factory automations. For Mining & Metal Industry |
Braided Flexible Steel Conduit, LIQUID TIGHT IP67 Model: YF-705 |
IP 67 |
This liquid tight conduit is designed to protect sensitive electronic circuits in applications such as communications, radar and data transmission from Electro-Magnetic and Radio Frequency Interference (EMI / RFI). Most suitable for radar equipments, airports, CNC machineries and PLC wirings in industrial environments. |
Braided Flexible Steel Conduit, All Metallic IP40 Model: SM-70001 |
|
Braided flexible steel conduit is used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. The SM-70001 is also excellent in protecting cables against metal particles and against vandalism or rodents. This braided flexible metal conduit is particularly used in (mechanical) critical situations, such as machine-building, steel works and in transport systems and security. |
Overbraided flexible conduits are particularly suitable for installation in abrasive environments. |
Braided
Flexible metallic stainless steel conduit is ideal for applications where corrosion resistance and cable protection are critical, such as offshore and chemical plants. |
Thermoplastic Rubber
Coated Metal Liquid Tight Conduit for extreme temperature wiring |
Delikon big size Metal Liquid Tight Conduit is suitable for industry and commercial liquid tight applications. Delikon Liquid Tight Conduit has been designed to excel in many applications including but not limited to machine and plant construction, CNC machines, motor and railroad power & signal systems. A whole line of liquid tight connectors are available. |
Delikon Stainless Steel Liquid tight Connectors offer corrosion resistance and the strength of stainless steel for the highest levels of endurance. All stainless steel constructions. Male or Female threads: G, PG, NPT, Metric. Straight and angle liquid tight fittings. |
DELIKON
offers a whole ragne of
heavy series Over Braided Flexible Conduit
and Fittings for protection of CNC machine cables. Delikon flexible conduit and fittings system provides reliable protection to industry cables. |
(1) Metal Wire Over Braided Flexible Conduits (Abrasion & Hot Metal Splashes Resistant, EMI/RFI shielding) |
Used extensively in the
machine tools,
petrochemical industrial
and other industrial environments |
Cable protection hoses Descriptions / Features |
Suitable connectors | |||||||||
YF-705 | *Galvanized steel strip core (with Nylon cord packing) *PVC Covering *Wire over-braid *Trade size: 3/8"~4" *Liquid-tight *EMI/RFI shielding |
Galvanised Steel Conduit, Smooth PVC Covering, Steel Overbraid (IP 67) |
||||||||
Galvanised Steel Conduit, Smooth PVC Covering, Liquid Tight, Metal Overbraid. It is designed to protect sensitive electronic circuits in demanding industry applications. | ||||||||||
SM-701 | *Galvanized steel strip core (Interlocked
constructions) *PVC covering *Metal wire over-braid
*Trade size: 3/8"~4" *Liquid-tight
*EMI/RFI shielding *High tensile strength |
Galvanized Steel Conduit, Smooth PVC Covering, Steel Overbraid, High Strength |
||||||||
For high tensile strength applications. |
||||||||||
YF-704 | *Galvanized steel strip core *PVC covering *Wire over-braid *1/4"~6" trade size *Very Flexible *Water-tight *EMI/RFI shielding |
Galvanized Steel Conduit with PVC Covering, Steel overbraid (IP 54) |
||||||||
BRAIDED Flexible metallic conduit, water proof, is typically used for steel mill machineries and petrochemical industries cable protection. |
||||||||||
PBF | *Corrugated Nylon core *Wire over-braid
*1/4"~2" trade size *Very Flexible, Light Weight *Liquid-tight *EMI/RFI shielding |
Corrugated Nylon Conduit, Steel Overbraid (IP 67) | ||||||||
Braided corrugated nylon wiring conduits for all types of machinery. Light weight, especially suitable for Robot cables protections. | ||||||||||
WNS/ORC | *Wire over-braid *6mm - 25mm trade size *Liquid-tight *Oil resistant *EMI/RFI shielding *Model ORC features an inner hose of high quality NBR rubber |
Oil Resistant Conduit, Steel Overbraid (IP 67) | ||||||||
Oil
Resistant Flexible Conduit is especially suitable for wiring machine tools, and hydraulic presses, which are subjected to moisture from coolant, oils and fluids. |
||||||||||
SM70001 |
*Galvanized steel strip core *Wire over-braid *3/8"~6" trade size *All metallic for high temperature applications *EMI/RFI shielding *High Temp. | Galvanized Steel Conduit, Steel overbraid (IP 40) | ||||||||
Overbraided Flexible Steel Conduit with Steel Braid, resists hot metal splashes. It is resistant against tensile stresses and transverse pressure. |
||||||||||
AT-SL-BRAIDED |
*Metal wire over braided small bore tubing *3.5mm - 12.7mm ID. *All metallic for high temperature applications *EMI/RFI shielding |
Stainless Steel Conduit, Steel Overbraid (IP 40) | ||||||||
High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible square locked metal tubing for optimum protection. It provides increased abrasion resistant, improved EMI screening, and resists hot metal splashes. Most suitable for industry and automobile wiring harness. |
||||||||||
SC |
*Inner Stainless steel flexible hose with fibre glass cord packing *Triple layers stainless steel wire braidings *high level of thermal resistance for combustion equipment wiring | Triple Stainless Steel Over Braided Flexible Stainless Steel Conduit (IP 50) | ||||||||
Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit for combustion equipment power and data cable protection |
Assembly |
Overbraided systems --- with connectors
pre-assembled --- save time and labor costs. Electric Flexible Conduit systems for EMI shielding, abrasion and hot metal splashes resistance. Comprises a standard conduit construction, with metallic overbraid. Typically used for machineries, steel mills and petrochemical industrial cable protection
|
Over Braided flexible metallic conduit systems are ideal for use in high temperature industrial applications with sparks, weld slag or hot swarf. The outer S.S. braid offers increased strength and emi shielding as well as excellent resistance to hot metal splash or abrasion. These braided conduits are particularly suitable for metal industries, e.g. steel mills, die-casting ... |
Delikon Heavy Series Over Braided Flexible Conduit and Fittings system - solutions for your automation cabling protection! |
|
Heavy Series Flexible Sheath and Connector for steel mills, coke plants and glass manufacturing power and data cable protection |
(2) Liquid-tight Flexible Conduits, Water Proof Flexible Conduits |
|
Protecting wiring in wet locations. Featuring: Electric liquid tight flexible metal conduit |
Type | Cable protection hoses Descriptions / Features |
Suitable connectors | ||||||||

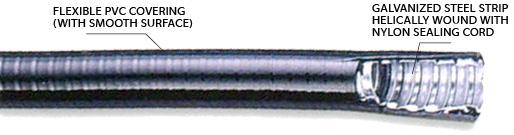

YF-706 | Liquid-Tight
Flexible Metal Conduit *Galvanized steel strip core (with Nylon cord packing) *Smooth PVC Covering *Trade size: 3/8"~6" *Liquid-tight |
Galvanised Steel Conduit, Smooth PVC Covering (IP 67) | ||||||||
YF-806 |
Interlocked Liquid Tight Flexible Metal Conduit *Galvanized steel strip core (Interlocked Construction) *Smooth PVC Covering *Trade size: 3/8"~6" *Liquid-tight |
InterLocked Galvanised Steel Conduit, Smooth PVC Covering (IP 67) | ||||||||
Interlocked liquid tight metal conduit for more frequent bending and moving applications. Also for tighter bend area. |
||||||||||
YF-604 | Computer Blue *Heavy gauge galvanized steel strip core ( with copper bonding wire) *PVC Covering *Trade size: 3/8"~2" *Liquid-tight |
Galvanised Steel Conduit, Smooth PVC Covering, With Copper Wire (IP 67) | ||||||||
Computer Blue is a liquid-tight flexible steel conduit commonly used for computer room installations. |
||||||||||

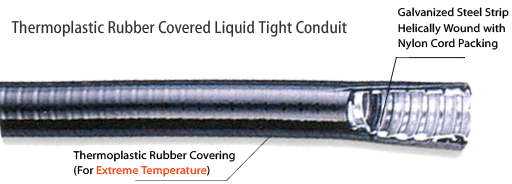

YF-906 |
Thermoplastic Rubber Covered Steel Liquid Tight
Conduit *Galvanized steel strip core (Delikon Interlocked) *Rubber Covering *Liquid-tight *Trade size: 3/8"~4" *Hi-Lo Temperature: -40C+140C |
Thermoplastic Rubber Covered Steel Liquid Tight Conduit (IP 67) | ||||||||
|
||||||||||
YF-706-SS |
*Stainless steel strip core (with Nylon cord packing) *Smooth PVC Covering *Trade size: 3/8"~4" *Liquid-tight Increased corrosion resistance |
Stainless Steel Liquid Tight Conduit (IP67) | ||||||||
Stainless Steel Liquid Tight Conduit provides increased corrosion resistance protection for wiring circuits located in extremely wet or damp areas. |
||||||||||
YF-806-SS | *Stainless steel strip Delikon Interlcokded core *Smooth PVC Covering *Trade size: 3/8"~6" *Liquid-tight Increased corrosion resistance with Excellent Strength | Stainless Steel Interlcoked Liquid Tight Conduit (IP67) | ||||||||
|
||||||||||
LSHF-806 |
Low Smoke Halogen Free Liquid Tight Conduit,
Zero Halogen *Galvanized steel strip core (Delikon Interlocked) *Smooth LSHF Covering *Trade size: 1/4"~4" *Liquid-tight |
Low Smoke Zero Halogen Interlocked Liquid Tight Conduit | ||||||||
|
YF-707 | *Galvanized steel strip core *PVC
covering *Trade size: 1/4"~6" (square-locked) 1/4"~6" (Interlocked) *Water-tight |
Galvanized Steel Conduit with PVC Covering (IP 54) | |
Vacuum jacketed steel flexible conduit |
|||
YF-707-SS | *Stainless steel strip core *PVC
covering *Trade size: 1/4"~6" (square-locked) 1/4"~6" (Interlocked) *Water-tight |
Stainless Steel Conduit with PVC Covering (IP 54) | |
|
|||
LSHF-707 | *Galvanized steel strip core *LSHF
covering *Trade size: 1/4"~4" (square-locked) 1/4"~4" (Interlocked) *Water-tight *Low smoke, halogen free |
Galvanized Steel Conduit with Non Halogen Covering (IP 54) | |
Zero Halogen Vacuum jacketed steel flexible conduit |
|||
PB | *Corrugated Nylon *5/16"~2" trade size
*Liquid-tight Also : Nylon Quick Connectors |
Non Metallic Corrugated Conduit, Steel Overbraid Overbraided conduits are particularly suitable for installation in abrasive environments. |
Braided
Flexible Conduits systems for use on vehicle and Railway systems wiring harness |
PE | NEW! FLEXIBLE OVERBRAIDING CONDUIT SYSTEMS | ||
Our overbraided flexible conduit systems protect vulnerable cabling on metal machining, welding or heavy plant where abrasion, spillage and increased temperature are all serious operational considerations. They also satisfy arduous demands on railway rolling stock and on essential line-side applications such as communications. |
|||
|
(3) Flexible Metallic Conduits, Inherent Low Fire Hazard Steel Conduit |
|
Inherent low fire hazard, high mechanical strength. For Light Industrial, Lighting Power Track. |
Type | Cable protection hoses Descriptions / Features |
Suitable connectors | ||||||||
YF-708 | *Galvanized steel strip wound (with sealing cord
packing: Cotton, Nylon, Rubber or Copper cord) *Trade size: 3/8"~4"
*High tensile strength |
Galvanized Steel Conduit with Sealing Cord (IP 50) | ||||||||
Flexible metal conduit with sealing cord |
||||||||||
YF-703 | *Galvanized steel strip core *Trade size: 1/4"~6" (square-locked 1/4"~4" (Interlocked) *Very flexible |
Galvanized Steel Conduit (IP 40) | ||||||||
Flexible metal conduit (Square locked or Interlocked constructions.) |
||||||||||
AT |
*Stainless steel strip (square locked or interlocked) *Most suitable for instrument panel wiring *Temperature Measuring Devices *Minimum I.D.: 4.0 mm!! |
Stainless Steel Conduit (IP 40), Small Bore Instrumentation Tubing | ||||||||
***Standard packaging methods for our flexible conduits: Shrink wrapped coils Reference By Model Number ****Find electrical flexible conduits by Typical Applications or by IP Ratings : Search now! On-Line Show Room
Superior quality, durable, and high pull out strength |
Threads |
Aluminum Connector |
|||||||
G (BSPP) | P30 | P15 | P16 | P17 |
P36 ( NPT ) |
P37
( NPT ) |
P20 | |
PG / M | P30 | P18 | P19 | P19 | ||||
Connector (Different Colors) |
Stainless Steel Fittings |
Screw in fittings |
EMT - Flexible |
|||||
Nylon Conduit Fittings | ||||||||
P32 | P33 | P33 | P36 | P21 | P24 | P25 | P26 | |
EMT Fittings |
EMT Connector |
EMT Coupling |
Swaging Connector |
Model DMF |
||||
NM LT Connector | ||||||||
P31 | P31 | P31 | P34 | P35 | Non Metallic Fittings | |||
Squeeze Type BX-Flex Connector | Compression EMT Coupling & Connector | Watertight Hub with Insulated Throat for rigid conduit or IMC | ||||||

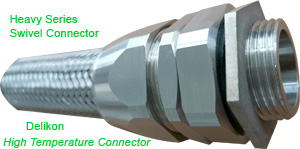

High Temperature Wiring : Connectors of all metal construction, most suitable for high temperature wirings. For Over braided flexible metal conduit and flexible steel conduit. |
||||||||
YABS | Connectors of all metal construction | |||||||
Delikon
produces a whole range of MS Plug Adapters for connecting a military
connector (MS Fittings) or circular connector to a flexible conduit for
industry cable management. |
MS Plug Adapters Model: MAS |
|||||||
Flexible Conduits Assemblies |
Conduit fittings with PG or Metric Threads | |||||||
Cut to length flexible conduit with connectors pre-assembled | ||||||||
Heavy Series Flexible Conduit, Heavy Series conduit fittings | Lock Nuts |
|
