LOW SMOKE,ZERO HALOGEN Water-tight Flexible Metal Conduit (LSHF)

Delikon Flexible Conduit and Fittings for mass transit systems electrical wirings

Flexible metallic conduit with low smoke, halogen free, water tight jacket:
*This water proof flexible steel conduit is designed for applications where safety concerns exist regarding a material's reaction in a fire situation.
*Water tight jacket made of low smoke, halogen free thermal- plastics, with excellent flame retardation and low smoke and toxicity generation characteristics.
*Durable and long life.
*Inner core made from galvanized steel strip.

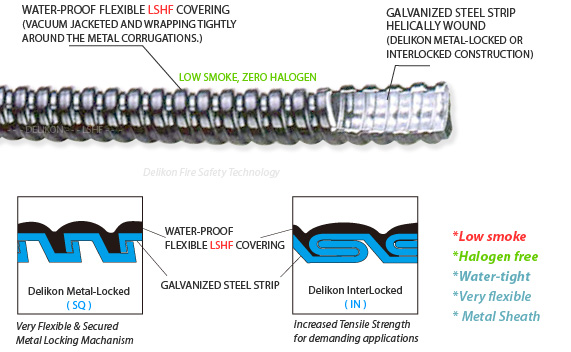

*Delikon metal locked construction for more flexibility or interlocked for more strength.
.
Applications:

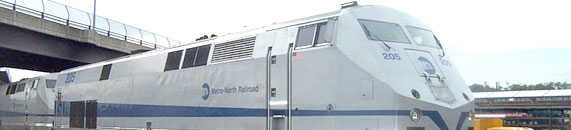

This flexible conduit is ideally suited for installation in confined or enclosed areas where construction materials must have limited smoke, low flame spread and low toxic gas emissions in the event of fire. Such applications include mass transit vehicles where water proof flexible conduit is extensively used for wiring harnesses within and under passenger rail cars. Other applications include use in underground subway structures and tunnels.
.
Related Products:
Low Smoke Zero Halogen liquid tight metal conduit

Added reassurance of enhanced fire safety
With normal PVC covering for general applications.
>>> Model YF-707

Over braided flexible metallic conduit for EMI shielding and hot metal splashes resistance.
>>> Model SM70001

Overbraided Flexible steel conduit with stainless steel braiding

Machine Grey liquid-tight flexible steel conduit is used extensively in the machine tools.

Heavy Series Over Braided Flexible metal Conduit
for EMI Shielding and abrasion resistant.

Small ID Metal Hose >>>

Corrugated Nylon Conduit, Fittings For industrial robot & control cables

YF-906 : Thermoplastic Rubber Covered Metal Liquid Tight Conduit For Extreme Temperature Environments

Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor Cable and CNC machine

Low Smoke Zero Halogen Jacketed Flexible Metal Conduit LSZH, LSOH, LS0H, LSFH, OHLS

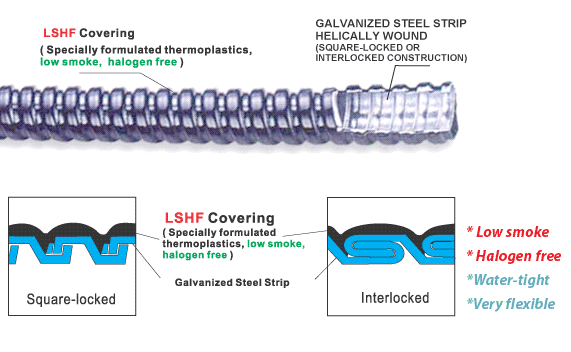

Low smoke,halogen free, water tight flexible metal conduit LSZH

The specially formulated thermoplastic jacket has excellent flame retardation and low smoke and toxicity generation characteristics. Acidic gases such as hydrogen chloride, hydrogen fluoride and hydrogen bromide are virtually eliminated as products of combustion.

*Halogen Free *Low Fire Hazard *Self Extinguishing

DELIKON METAL LOCKED (SQ)
Type	Trade Size	I.D. (mm)		O.D. (mm)		Min. Bending Radius (mm)	Meter/Coil
Type	Trade Size	Min.	Max.	Min.	Max.	Min. Bending Radius (mm)	Meter/Coil
LSHF-70701-SQ	-	7.8	8.2	11.2	11.6	50	100
LSHF-70702-SQ	1/4"	9.7	10.2	14.0	14.5	50	100
LSHF-70703-SQ	3/8"	12.3	12.8	16.7	17.2	50	50
LSHF-70704-SQ	1/2"	15.7	16.3	20.2	20.7	65	50
LSHF-70706-SQ	3/4"	20.7	21.2	25.5	26.1	75	50
LSHF-70710-SQ	1"	26.0	26.6	31.6	32.2	100	50
LSHF-70712-SQ	1-1/4"	34.7	35.4	40.8	41.5	125	30
LSHF-70714-SQ	1-1/2"	40.0	40.6	46.6	47.2	150	25
LSHF-70720-SQ	2"	51.3	51.9	58.1	58.7	175	20
LSHF-70724-SQ	2-1/2"	62.9	63.6	72.1	73.0	200	10
LSHF-70730-SQ	3"	77.9	78.7	87.9	88.9	225	10
LSHF-70740-SQ	4"	101.6	102.6	113.2	114.3	275	10
INTERLOCKED (HIGH TENSILE STRENGTH)
Type	Trade Size	I.D. (mm)		O.D. (mm)		Min. Bending Radius (mm)	Meter/Coil
Type	Trade Size	Min.	Max.	Min.	Max.	Min. Bending Radius (mm)	Meter/Coil
LSHF-70701-IN	-	7.8	8.2	11.2	11.6	50	100
LSHF-70702-IN	1/4"	9.7	10.2	14.0	14.5	50	100
LSHF-70703-IN	3/8"	12.3	12.8	16.7	17.2	50	50
LSHF-70704-IN	1/2"	15.7	16.3	20.2	20.7	65	50
LSHF-70706-IN	3/4"	20.7	21.2	25.5	26.1	75	50
LSHF-70710-IN	1"	26.0	26.6	31.6	32.2	100	50
LSHF-70712-IN	1-1/4"	34.7	35.4	40.8	41.5	125	30
LSHF-70714-IN	1-1/2"	40.0	40.6	46.6	47.2	150	25
LSHF-70720-IN	2"	51.3	51.9	58.1	58.7	175	20
LSHF-70724-IN	2-1/2"	62.9	63.6	72.1	73.0	200	10
LSHF-70730-IN	3"	77.9	78.7	87.9	88.9	225	10
LSHF-70740-IN	4"	101.6	102.6	113.2	114.3	275	10

Stainless Steel Liquid Tight Connector and Stainless Steel Liquid Tight Conduit for corrosive environments

In a fire, a chlorine-containing plastic material releases hydrogen chloride, a poisonous gas that forms hydrochloric acid when it comes in contact with water. Delikon halogen-free flexible conduit, on the other hand, do not produce a dangerous gas acid combination when exposed to flame. Delikon low smoke zero halogen flexible conduit is becoming very popular and, in some cases, a requirement where the protection of people and equipment from toxic and corrosive gas is critical like in the railway industry and shipbuilding industry.

Download the catalog page for DELIKON LSHF-707 Low Smoke Zero Halogen Jacketed Coated Flexible Steel Conduit in PDF File format.

*All sizes and dimensions listed above are subject to manufacturing tolerances. non halogen conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval. non halogen conduit non halogen conduit flexible steel conduit

	Delikon Heavy Series electrical flexible conduit, Heavy Series connector for industry cables management. PG or Metric Threads Fittings

Delikon big size Metal Liquid Tight Conduit is suitable for industry and commercial liquid tight applications. Delikon Liquid Tight Conduit has been designed to excel in many applications including but not limited to machine and plant construction, CNC machines, power plant, power transformers, motor and railroad power & signal systems. Full range of liquid tight connectors are available.

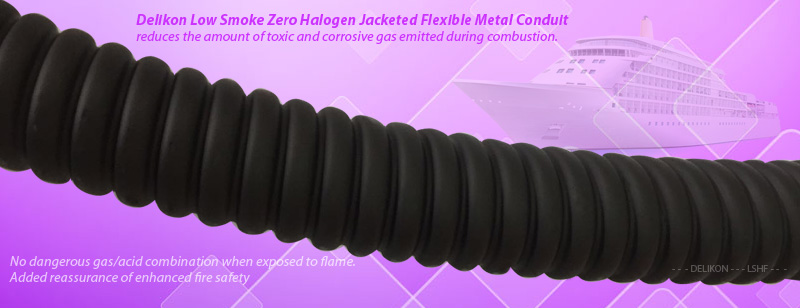

Delikon Low Smoke Halogen Free Jacketed Flexible Metal Conduit reduces the amount of toxic and corrosive gas emitted during combustion. The jacketing of this zero halogen flexible conduit is composed of thermoplastic compounds that emit limited smoke and no halogen when exposed to high sources of heat. LSZH, LSOH, LS0H, LSFH, OHLS flexible conduit is typically used in poorly ventilated areas such as aircraft, rail cars or ships. It is also used extensively in the railroad industry, where the protection of people and equipment from toxic and corrosive gas is critical like in the railway industry and shipbuilding industry.

Delikon Low Smoke Zero Halogen Jacketed Flexible Metal Conduit reduces the amount of toxic and corrosive gas emitted during combustion. The jacketing of this zero halogen flexible conduit is composed of thermoplastic compounds that emit limited smoke and no halogen when exposed to high sources of heat. LSZH, LSOH, LS0H, LSFH, OHLS flexible conduit is typically used in poorly ventilated areas such as aircraft, rail cars or ships. It is also used extensively in the railroad industry, where the protection of people and equipment from toxic and corrosive gas is critical like in the railway industry and shipbuilding industry.
