InterLocked Flexible Liquid Tight Conduit (YF-806)

InterLocked Flexible Metal Liquid Tight Conduit ( YF-806 )

PVC Covered InterLocked Flexible Metallic Liquid tight Conduit Galvanized steel strip core with interloked construction Smooth Heavy Duty PVC sheath Fully flexible with exceptional mechanical strength Trade size: 1/4"~6" Liquid-tight High mechanical tensile strength Cover does not wrinkle when bent Interlocked liquid tight conduit is most suitable for wet and vibrating locations

MADE FROM YF-703IN FLEXIBLE METALLIC CONDUIT WITH HEAVY DUTY SMOOTH PVC COVERING:
*Durable and long life.
*High tensile & crush strength.
*Inner core made from a spiral Interlocked strip of corrosion resistant galvanized steel.
*Interlocked metal construction prevents unraveling under frequent bending and movements. And offering tighter bend radius.
*Smooth wipe clean PVC covering surface. The PVC is keyed into the corrugations of the inner steel flexible core, preventing the PVC from wrinkling when the conduit is frequently bent or moved.
*Liquid tight. Complete protection against most liquids and moisture vapor. Resists sunlight, heat, oil and chemical degradation.

Applications:
Interlocked Liquid tight flexible metallic conduit provides protection for wiring circuits located in extremely wet or damp areas. Used in industrial and commercial applications for conveyors, blowers, cranes, air conditioners, machine tooling and lubrication equipment, rail way and power plant

Related Products:

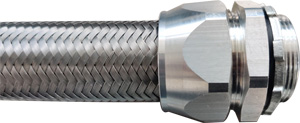

Interlocked Liquid tight flexible metal conduits with metal wire over-braid for more abrasion resistance and EMI screening.
>>> Model SM-701
Wire over-braiding provides more abrasion resistant,
EMI shielding and resistance to hot metal splashes

>>> Model YF-706 (With Filler)

Metal Liquid tight conduit with nylon sealing cord for industry and commercial wiring

>>> Model YF-707 (VCJ)

Vacuum PVC Jacketed Flexible Metal conduit and liquid tight connector for high flex installation

Heavy Series Flexible Sheath over braided flexible conduit for EMI shielding or abrasion resistance.
>>> Model SM70001

HEAVY SERIES over braided flexible metal conduit and fittings protect iron rolling mill cable

PG and Metric Liquid tight conduit connector, liquid tight fittings

Heavy Series Over Braided Flexible Conduit and Connector For Mining and Metal Industry Wirings

Over Braided Flexible Metal Conduit Systems For Industry Wirings

Interlocking flexible liquid tight conduit is made from a helical ribbon of zinc coated strip, and externally coated in smooth and durable PVC. Resistant to most types of oils and greases, interlocked liquid tight conduit provides good flexibility and excellet mechanical resistance when subjected to traction stresses. Most suitable for industry machineries cables protection.

Type	Trade Size	I.D. (mm)		O.D. (mm)		Min. Bending Radius (mm)	Meters/Coil
Type	Trade Size	MIN.	MAX.	MIN.	MAX.	Min. Bending Radius (mm)	Meters/Coil
YF-80602	1/4"	6.2	6.7	11.4	11.9	50	100
YF-80603	3/8"	12.5	13.0	17.8	18.3	60	50
YF-80604	1/2"	16.1	16.6	21.3	21.8	80	50
YF-80606	3/4"	20.7	21.3	25.9	26.4	100	30
YF-80610	1"	26.3	26.8	33.3	33.8	150	30
YF-80612	1-1/4"	35.0	35.5	42.6	43.1	180	20
YF-80614	1-1/2"	40.0	40.5	47.6	48.0	220	20
YF-80620	2"	51.0	51.5	60.3	60.8	250	15
YF-80624	2-1/2"	63.0	63.7	72.2	73.0	300	10
YF-80630	3"	78.0	78.8	88.2	89.0	450	10
YF-80640	4"	101.8	102.8	113.2	114.0	600	5
YF-80650	5" (same as YF-70650)	126.0	128.0	133.0	135.0	750	5
YF-80660	6" (same as YF-70660)	149.0	151.0	156.0	158.0	900	5

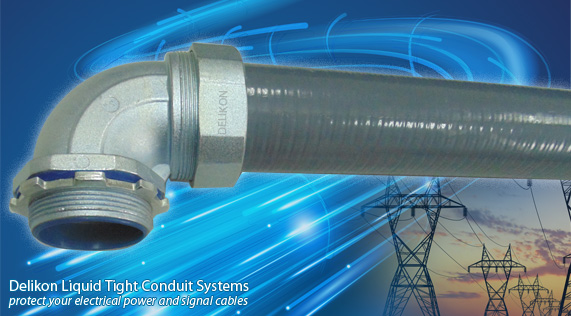

Delikon Liquid tight conduit,liquid tight conduit fittings,LT conduit connector,liquid tight conduit connector for industry wirings,railway power and signal wiring, power station and transformer wiring

Delikon liquid tight conduit system protects your electrical power and sinal cable. Delikon Liquid tight conduit,liquid tight conduit fittings,LT conduit connector,liquid tight conduit connector for industry wirings,railway power and signal wiring, power station and transformer wiring

Download the catalog page for DELIKON YF-806 Interlocked Liquid Tight Conduit

Download the catalog page for DELIKON YF-806 Liquid Tight Conduit in
PDF File format. Or have a look at other models of liquid tight conduit:

*We are also dedicated to "cut-to-length" order for flexible conduits. Consult Delikon for details
*All sizes and dimensions listed above are subject to manufacturing tolerances. flexible liquidtight conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval. Also Refer To: Braided Flexible Metal Conduit Flexible S.S. Conduit

Delikon Swivel Liquid Tight Connector

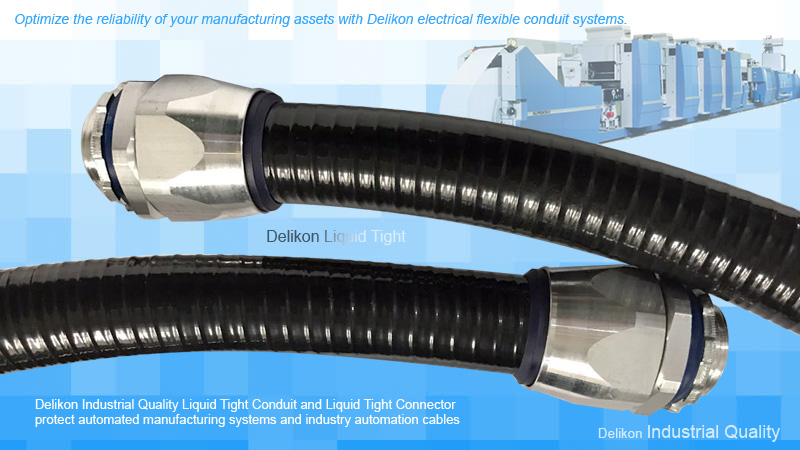

Optimize the reliability of your manufacturing assets with Delikon electrical flexible conduit systems.
Introducing Delikon Industrial Quality Liquid Tight Conduit and Liquid Tight Connector.

Manufacturers are using machine automation and controls to produce quality products faster and more efficiently. These automated systems also provide critical information to help managers make good business decisions. The ability to provide protections to various power and data cables interconnecting machineries such as vertical machining centre (VMC), sensors, motors and control systems, and PLC is an important part of automation. With this in mind, Delikon is producing a complete line of industrial grade flexible conduit and fittings systems to optimize the reliability of your manufacturing assets.

Optimize the reliability of your manufacturing assets with Delikon electrical flexible conduit systems. Introducing Delikon Industrial Quality Liquid Tight Conduit and Liquid Tight Connector.

Delikon angle liquid tight stainless steel connector, 1/4 inch to 6 inches

DELIKON FLEXIBLE CONDUIT SYSETM FOR AUTOMATED MANUFACTURING SYSTEMS

Delikon industrial quality flexible conduit systems include: liquid tight conduit, fixed and swivel liquid tight connector, metal conduit fittings, heavy series over braided flexible conduit, EMI shielding over braided flexible corrugated nylon conduit, heavy series connectors, stainless steel flexible conduit, stainless steel connectors, and PVC coated flexible metal conduit.

Delikon automation cable protection EMI Shielding ESD Suppressing Heavy Series Over Braided Flexible Conduit and Fittings

Delikon EMI Cable Shielding Flexible Conduit solutions cover a range from heavy series over braided flexible metal conduit, heavy series water proof over braided flexible conduit to heavy series over braided liquid tight conduit. The over braided flexible conduits can be used for EMI, ESD suppression. The shielding flexible conduit comes in various sizes and its metallic, strong nature allows it to withstand any irregular pressure that may occur.

Delikon delivers an extensive flexible cable management package for cables coming in and out of switching facility control cabinets. Besides protecting wirings of operating stations for the process control system, Delikon emi shielding heavy series over braided flexible conduit and heavy series connectors also protect the cable lines of pressure gauges, flow meters, temperature measuring devices and control valves.

Delikon Emi Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector, wiring solutions for metallurgical process control, metal manufacturing automation
Delikon delivers an extensive flexible cable management package for cables coming in and out of switching facility control cabinets. Besides protecting wirings of operating stations for the process control system, Delikon emi shielding heavy series over braided flexible conduit and heavy series connectors also protect the cable lines of pressure gauges, flow meters, temperature measuring devices and control valves.

Delikon Heavy Series Over Braided Flexible Conduit,Fittings protect Industry 4.0 automation power, signal and data cables

refer to Braided Conduit System for heavy industry

Braided Flexible Metal Conduit

Delikon Liquid Tight Connector,liquid tight conduit fittings

CONNECTORS & FITTINGS FOR
LIQUID TIGHT FLEXIBLE CONDUIT
For Industry Automation

EMI Shielding Over Braided Flexible Conduit For Industry Control Wiring

EMI Shielding Conduit

Suitable connectors ( LT Metal Connectors )

Aluminum connectors (FIXED or SWIVEL)

Aluminum connectors (BLACK)

Aluminum connectors (RED)

Non Metallic Liquid Tight Conduit Fittings

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Non Metallic LT Fittings
