Automation Cable Protection EMI Shielding Over Braided Flexible Conduit


Overbraided systems--- braided flexible conduit braided flexible conduit braided flexible conduit Electric Flexible Conduit systems for EMI & RFI shielding, abrasion and hot metal splashes resistance braided flexible conduit braided flexible conduit braided flexible conduit braided flexible conduit Comprises a standard conduit construction, with metallic overbraid. flexible conduit flexible conduit Typical electric wiring and cables protections applications where the following is a consideration:
		EMI screening capabilities in braided flexible conduit systems In applications where electromagnetic interference can be of particular concern, Delikon has a range of dedicated over braided flexible conduit systems that can provide the required standard of protection for cables. The systems provide high EMI screening and offer a range of protection to the cables carried by the system. In combination with the system's specially designed metallic fittings, the flexible conduit system can afford a high degree of EMI screening capability for a range of industrial and commercial applications. Overbraiding also increases the security of installations in sensitive or high risk public areas, typical applications being underground, communications, public safety, security, lighting and CCTV installations.
Electromagnetic Interference (EMI) computers rooms telecommunications control systems braided flexible conduit Abrasion resistance braided flexible conduit* railway rolling stock heavy duty industrial cable management applications braided flexible conduit Mechanical integrity braided flexible conduit security/CCTV anti-vandal applications Hot metal splashes resistance steel & iron mills petrochemical plants

	Cable protection hoses Descriptions / Features	Suitable connectors

YF-705	Galvanized steel strip core (with Nylon cord packing) PVC Covering Wire over-braid Trade size: 3/8"~4" Liquid-tight EMI/RFI shielding	Galvanised Steel Conduit, Smooth PVC Covering, Steel Overbraid (IP 67)
		Galvanised Steel Conduit, Smooth PVC Covering, Liquid Tight, Metal Overbraid. It is designed to protect sensitive electronic circuits in demanding industry applications.
SM-701	Galvanized steel strip core (Interlocked constructions) PVC covering Metal wire over-braid Trade size: 3/8"~4" Liquid-tight EMI/RFI shielding *High tensile strength	Galvanized Steel Conduit, Smooth PVC Covering, Steel Overbraid, High Strength
		For high tensile strength applications.
YF-704	Galvanized steel strip core PVC covering Wire over-braid 1/4"~6" trade size *Very Flexible Water-tight EMI/RFI shielding	Galvanized Steel Conduit with PVC Covering, Steel overbraid (IP 54)
		BRAIDED Flexible metallic conduit, water proof, is typically used for steel mill machineries and petrochemical industries cable protection.
PBF	Corrugated Nylon core Wire over-braid 1/4"~2" trade size Very Flexible, Light Weight Liquid-tight EMI/RFI shielding	Corrugated Nylon Conduit, Steel Overbraid (IP 67)
		Braided corrugated nylon wiring conduits for all types of machinery. Light weight, especially suitable for Robot cables protections.
WNS/ORC	Wire over-braid 6mm - 25mm trade size Liquid-tight Oil resistant EMI/RFI shielding Model ORC features an inner hose of high quality NBR rubber	Oil Resistant Conduit, Steel Overbraid (IP 67)
		Oil Resistant Flexible Conduit is especially suitable for wiring machine tools, and hydraulic presses, which are subjected to moisture from coolant, oils and fluids.
SM70001	Galvanized steel strip core Wire over-braid 3/8"~6" trade size All metallic for high temperature applications EMI/RFI shielding High Temp.	Galvanized Steel Conduit, Steel overbraid (IP 40)
		Overbraided Flexible Steel Conduit with Steel Braid, resists hot metal splashes. It is resistant against tensile stresses and transverse pressure.
AT-SL-BRAIDED	Metal wire over braided small bore tubing 3.5mm - 12.7mm ID. All metallic for high temperature applications EMI/RFI shielding	Stainless Steel Conduit, Steel Overbraid (IP 40)
		High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible square locked metal tubing for optimum protection. It provides increased abrasion resistant, improved EMI screening, and resists hot metal splashes. Most suitable for industry and automobile wiring harness.
SC	Inner Stainless steel flexible hose with fibre glass cord packing Triple layers stainless steel wire braidings *high level of thermal resistance for combustion equipment wiring	Triple Stainless Steel Over Braided Flexible Stainless Steel Conduit (IP 50)
		Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit for combustion equipment power and data cable protection

Assembly

Overbraided systems --- with connectors pre-assembled --- save time and labor costs.
Electric Flexible Conduit systems for EMI shielding, abrasion and hot metal splashes resistance. Comprises a standard conduit construction, with metallic overbraid.
Typically used for machineries, steel mills and petrochemical industrial cable protection

Over Braided Flexible Steel Conduits For Industry Wirings

FLEXIBLE EMC SCREENING CONDUITS

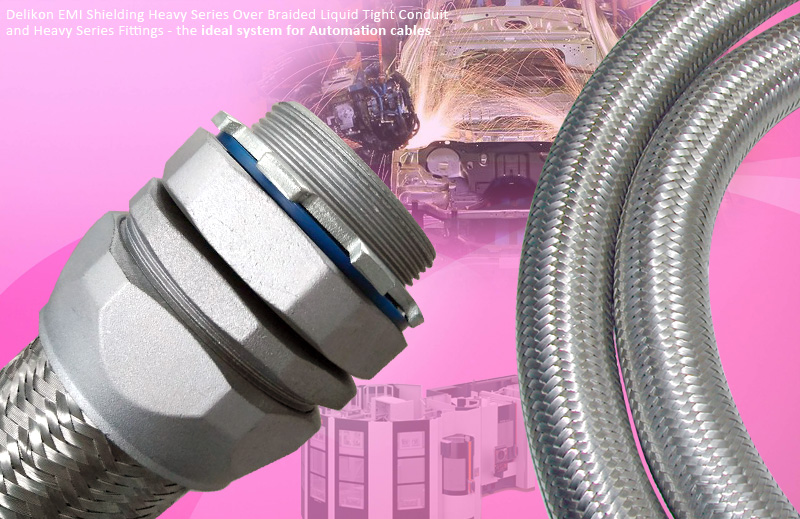

Delikon EMI Shielding Heavy Series Over Braided Liquid Tight Conduit and Heavy Series Fittings
the ideal system for Automation cables

The demands on protection of modern machines and plants electrical and data cables are steadily growing in all industries.

Swivel Heavy Series Braided Conduit Connector provides easy and effective EMI termination of the shield

With the Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings from Delikon, you can cover all Automation cable protection requirements while benefiting from maximum efficiency, flexibility, and cost effectiveness. In both control cabinets and system cabling, the key factor in achieving high availability of your electronic system is secure and failsafe connection of all components. Therefore, you need Delikon as a reliable single source partner who can deliver modern, efficient and well laid out flexible conduit and connector systems.
With Heavy Series Over Braided Liquid Tight Conduit and Heavy Series Fittings, Delikon delivers a complete EMI shielding liquid tight range of connection technology for the Automation Systems.

Delikon EMI Shielding Heavy Series Over Braided Liquid Tight Conduit and Heavy Series Fittings the ideal system for Automation cables. The demands on protection of modern machines and plants electrical and data cables are steadily growing in all industries. With the Heavy Series Over Braided Flexible Conduit and Heavy Series Fittings from Delikon, you can cover all Automation cable protection requirements while benefiting from maximum efficiency, flexibility, and cost effectiveness.

Delikon EMI Cable Shielding and ESD Suppressing Heavy Series Over Braided Flexible Conduit and Connector

Delikon EMI Cable Shielding Flexible Conduit solutions cover a range from heavy series over braided flexible metal conduit, heavy series water proof over braided flexible conduit to heavy series over braided liquid tight conduit. The over braided flexible conduits can be used for EMI, ESD suppression. The shielding flexible conduit comes in various sizes and its metallic, strong nature allows it to withstand any irregular pressure that may occur. Grounding can also be easily achieved with Delikon Heavy Series Fittings. The connector comes with a metal clamp, providing simultaneous attachment and grounding for the braiding. The connector is used as an end piece for cable shielding system. Delikon EMI Cable Shielding and ESD Suppressing Heavy Series Over Braided Flexible Conduit and Connector provide convenient solutions to protect automation cables from EMI that may be coming from outside components as well as provide environmental protection.

Delikon Automation Servo Motor Drive Heavy Series Over Braided Flexible Conduit with MS Backshell

Liquid Tight Conduit
for commercial and industry

Electrical Over Braided Flexible Steel Conduits for heavy industry wirings

YF-705 (IP67)

YF-704 (IP54)

SM70001(IP40)

flexible steel conduit braided flexible conduit braided flexible conduit flexible steel conduit
Electrical Over Braided Flexible Steel Conduits for heavy industry wirings

To provide superior protection and immunity from electromagnetic interference, as well as increased mechanical abrasion resistance, Delikon has introduced the above complete line of Overbraided Flexible Metal Conduits systems that could meet your heavy industry wiring requirements

Over Braided Flexible Steel Conduits for heavy industry

Connectors and fittings for braided flexible conduit

CONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT

Suitable connectors

YABS, All metal connector for high temperature

Manufacturer of quality electrical flexible conduit and fittings systems. sales@semiconduits.com Fax: 86-21-64867229

Delikon Heavy Series Over Braided Flexible Conduit and Heavy Sheath Flexible Conduit Fittings protect CNC EDM Machine Data and Power Cable and Fluid Line. Delikon Over Braided Flexible Conduit and Fittings provide reliable protection to cables. Delikon Heavy Series Over Braided Flexible Conduit with MS Adapter for Servo Motor Cable protectio

Metal Liquid Tight Conduit and Conduit Fittings

Heavy Series

Interlocked Over Braided Liquid Tight Conduit and Fittings

Delikon Heavy Series Over Braided Flexible Conduit and Fittings are specially designed for protecting electric and automation cables from the harsh environments found in steel mills, coke plants and glass manufacturing. Our heavy series over braided flexible conduit systems are superior in their ability to withstand heat, moisture and molten material splash and are highly resistant to mechanical and physical abuse. The overall stainless steel braid provides slag protection. Heavy Series Flexible Sheath and Conduit fittings

Heavy Series Over Braided Flexible Conduit and Fittings are specially designed for protecting electric and automation cables from the harsh environments found in steel mills, coke plants and glass manufacturing.

Heavy Series Over Braided Flexible Conduit and Connector protect FLNG and LNG facility automation cables

Automation Cable Protection EMI Shielding Over Braided Flexible Conduit Systems braided flexible conduit	EMI/RFI SCREENING

typically used for machineries, mining and petrochemical industrial cable protection braided flexible conduit 1/4"~6" trade size EMI/RFI shielding Resists hot metal splashes Abrasion resistant braided flexible conduit Delikon EMI Shielding Over Braided Flexible Conduit and Conduit Fittings cover all your Automation cable protection requirements.

EMI/RFI manifests itself in many ways and can be conducted by radiation or through mains cable and earthing connections. The impact of this can be critical to the performance of vital equipment that may be used in many different market sectors, from hospitals and nuclear plants through to industry automation installations and many other demanding environments. To provide excellent protection and immunity from electromagnetic interference, Delikon has introduced a complete line of Over braided Flexible Conduit systems to meet your tough wiring requirements: braided flexible conduit
