Thermoplastic Rubber Covered Metal Liquid Tight Conduit (YF-906)

Thermoplastic Rubber Covered Metal Liquid Tight Conduit ( YF-906 )

For Wide Temperature Range Environments: -40C to +140C * (approximate) Thermo plastic rubber coated metal Liquid Tight Conduit is most suitable for protecting electrical cables in demanding applications, such as heavy outdoor equipment, hydraulic machines, railway signal systems, industry control equipment, industry automation systems, motor cables, and sub-zero areas

MADE FROM YF-703-IN FLEXIBLE METALLIC CONDUIT WITH HEAVY DUTY Thermoplastic Rubber COVERING:

*Durable and long life.
*High tensile strength.
*Inner core made from a spiral wound strip of corrosion resistant galvanized steel.
*Unique Delikon Interlocking Mechanism for increased strength, and good moisture tightness. A durable wipe clean Rubber covering surface is keyed into the metal corrugations.
*Liquid tight. Complete protection against most liquids and moisture vapor. Resistance to Wide Temperature Range exposure (Hi-Lo Temperature)

Liquid Tight Conduit
with aluminum connector

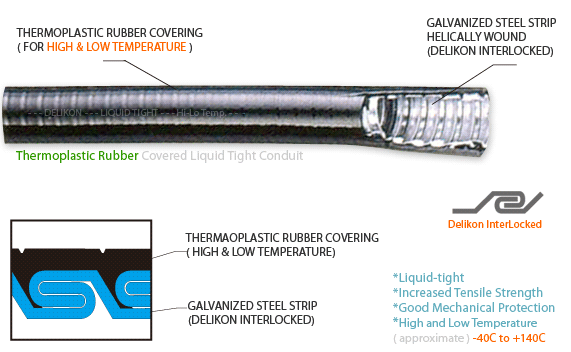

Thermoplastic Rubber Covered Liquidtight flexible metal conduit is manufactured from an electro-galvanised steel flexible inner core which is pressure coated with an oil resistant, high temperature grade of Thermoplastic Rubber. The Rubber is keyed into the corrugations of the inner steel flexible core, preventing the rubber covering from wrinkling when the conduit is bent to its minimum bend radius.

Delikon
4 inches aluminum liquid tight connector

Grey color liquid tight conduit for machine tools wirings:


Applications:
Thermoplastic Rubber covered liquid tight conduit is used in situations where concerns of resistance to extreme temperature exposure exist. These include heavy outdoor equipment, railway signal systems and sub-zero areas.
Delikon Liquid Tight Conduits now in extensive use on presses, welders, pumps, blowers, grinders, conveyors, machines and portable tools, automated lines, and in construction, power plants, industry, commerce and transportation.
Related Products:

DELIKON has introduced a range of over braided flexible nylon corrugated conduit & metal fittings with EMC screening capacity.

Heavy series conduit fittings for over braided flexible conduit.
Delikon HEAVY SERIES over Braided Flexible Metal Conduit and Heavy Series Fittings for iron mill cable retrofit

Delikon InterLocked Stainless Steel Liquid Tight Conduit,stainless steel liquidtight connector for MINING AND QUARRYING INDUSTRY wiring

High temperature heavy series Over Braided Flexible metal Conduit for CNC and EDM machine wiring

Thermo Plastic Rubber Covered Steel Liquid Tight Conduit and Metal Liquid Tight Connector for Wide Temperature Range Environments Electrical Cable Protections

Type YF-906 Thermoplastic Rubber Covered Metal Liquid Tight Conduit is well suited for exposure to Wide Temperature Range climatic conditions. It is also widely used on industrial process equipment such as Hydraulic machines, Lumber Kilns, Foundries, Refrigeration, etc. It is a conduit designed to withstand a wide temperature range. Used in situations where concerns of resistance to temperature exposure exist. These include heavy outdoor equipment, railway signal systems and sub-zero areas.

Thermoplastic Rubber Covered Galvanised Steel Liquid Tight Conduit

Type	Trade Size	I.D. (mm)		O.D. (mm)		Min. Bending Radius (mm)	Meters/Coil
Type	Trade Size	MIN.	MAX.	MIN.	MAX.	Min. Bending Radius (mm)	Meters/Coil
YF-90602	1/4"	6.2	6.7	11.4	11.9	50	100
YF-90603	3/8"	12.5	13.0	17.8	18.3	60	50
YF-90604	1/2"	16.1	16.6	21.3	21.8	80	50
YF-90606	3/4"	20.7	21.3	25.9	26.4	100	30
YF-90610	1"	26.3	26.8	33.3	33.8	150	30
YF-90612	1-1/4"	35.0	35.5	42.6	43.1	180	20
YF-90614	1-1/2"	40.0	40.5	47.6	48.0	220	20
YF-90620	2"	51.0	51.5	60.3	60.8	250	15
YF-90624	2-1/2"	63.0	63.7	72.2	73.0	300	10
YF-90630	3"	78.0	78.8	88.2	89.0	450	10
YF-90640	4"	101.8	102.8	113.2	114.0	600	5

Download the catalog page for DELIKON YF-906 Thermoplastic Rubber Coated Liquid Tight Conduit in PDF File format.

Complete Range of Delikon Quality Liquid Tight Conduits

Stainless Steel Liquid Tight connector for offshore wiring

Delikon Stainless Steel Liquidtight Connectors offer corrosion resistance and the strength of stainless steel for the highest levels of endurance.
Delikon Stainless Steel Liquid Tight Conduit and Stainless Steel Liquid Tight Connector are widely chosen by water treatment plant, sewage treatment plant, petrochemical plant, Oil & Gas industry, mining industry, food & beverage and pharmaceutical industry, paper industry, offshore industry . . . or applications where better corrosion resistance is required.

See also: Stainless Liquid Tight Conduit and Stainless Steel Liquid Tight Connector for chemical instrument wiring, offering the highest possible solution for liquidtight applications in environments like food processing, paper mills, oil refineries and more.

*We are also dedicated to "cut-to-length" order for flexible conduits. Consult Delikon for details
* Temperatures and other specifications are affected by different installation conditions and operating environments. The Performance and Suitability of the flexible conduit for one particular application must be determined by trial. The design and specifications are subject to change without prior notice for product improvement or regulatory requirements.
*All sizes and dimensions listed above are subject to manufacturing tolerances. flexible liquidtight conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval. Also Refer To: Braided Flexible Metal Conduit Flexible S.S. Conduit

Delikon Industrial Liquid Tight Conduit and Fittings protect Agricultural Equipment, Robotics and Automation Cables
Delikon Rubber Coated Liquid Tight Conduit and Liquid Tight Connector for Agricultural Automation cable protection
Agriculture is humankinds oldest and still is the most important economic activity. Robotics and automation can play a significant role in meeting agricultural production needs. Advances in sensors and control systems allow for optimal resource and integrated pest and disease management. The mission of the Delikon Industrial Liquid Tight Conduit and Liquid Tight Fittings is to provide reliable protection sheath to Agricultural Equipment, Robotics and Automation Cables, sensors and control systems cables, enabling safe, efficient, and economical agricultural production.
