Over Braided Flexible Steel Conduit EMC Screening,High Temperature Wiring

Over braided flexible steel conduit
is particularly used in (mechanical) critical situations, such as machine-building, steel works but also in transport systems and security.

It is excellent in protecting cables against metal particles and against vandalism or rodents.

YF-704 (IP54)

YF-705 (IP67)

SM-70001 (IP40)

Construction & Features
Braided flexible metal conduits are manufactured with metal wire over braiding, providing high mechanical strength and offering high flexibility. These flexible conduits, at full extension offer high tensile strength without elongation thus protection cables from being over-tensioned or stretched. These flexible conduits also provide a high level of EMI screening for data cables.
Applications
Braided flexible metal conduit is used for applications requiring high mechanical strength and flexibility. The overbraid will protect the inner conduit from damage caused by hot swarf or abrasion.

3 Models Of Different IP Ratings Provide Complete Wiring Solutions

Industry Solutions

This system affords high compression and crush strength as well as impact resistance. There are 3 models in the the Braided system range:

YF-704 (IP54)	YF-705 (IP67)	SM-70001 (IP40)

Factory Automation Wirings, Industry Hazardous Locations Wirings, Welding Line Wirings, Robotics Wirings

Overbraided metallic system : All these 3 models have abrasion protection, hot metal splash resistant, high pull off strength and offers EMI/RFI screening. These metal wire over braided conduits also permit traditional wiring solutions in shielding applications, providing an alternative to costly, specialized shielded cable assemblies.

Steel braided flexible conduit is ideal for tight spot applications where high protection is required against sparks and hot swarfs.

Steel braided flexible conduits are ideal for tight spot applications where high protection is required against sparks and hot swarfs.

They are also used to counter mechanical stress and is highly flexible, and they are resistant against tensile stresses and transverse pressure. Most suitable for steel mills and other industry wirings.

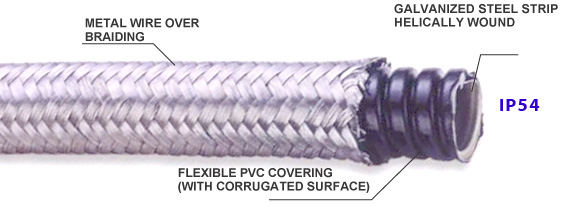

Braided Flexible Steel Conduit, Water Proof IP54 Model: YF-704
IP 54

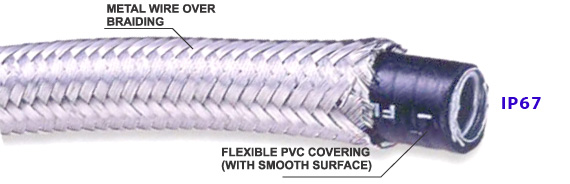

Braided Flexible Steel Conduit, LIQUID TIGHT IP67 Model: YF-705
IP 67

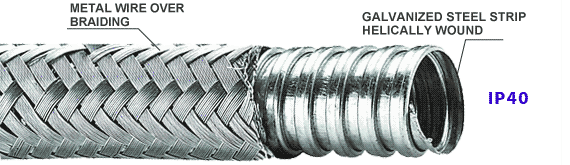

Braided Flexible Steel Conduit, All Metallic IP40 Model: SM-70001
IP 40 *High Temp.
Flexible Metal Conduit for Heavy Mechanical Stress --- This braided flexible steel conduit is designed with an spirally wound metal armor surrounded by a steel wire braid. This design makes it suitable for use under heavy mechanical stresses. Due to the temperature resistance, braided steel conduit is also recommended for use where conduit is exposed to extreme heat. Braided steel conduit has high tensile, twisting and bending strength, while offering high flexibility.
Overbraided flexible conduits are particularly suitable for installation in abrasive environments.
	Braided Flexible Electrical Conduit Systems typically used for machineries and petrochemical industrial cable protection 1/4"~4" trade size EMI shielding *Resists hot metal splashes emi shieled conduit Comprises a standard conduit construction, with metallic overbraid.braided flexible conduit
	Recommended Connectors

*Railway rolling stock *Heavy duty industrial cable management applications *Sensitive Cables

braided flexible conduit emi shieled conduit

Related products: Electrical braided flexible small ID metal conduits for wiring harness used in automobiles, fiber optics, and industries applications.
Stainless Steel Conduit, Steel Overbraid	TYPE: AT-SL-BRAIDED High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible metal tubing for optimum protection of cables. It provides increased abrasion resistant, improved EMI screening, and resists hot temperatures. Most suitable for Automobile wiring harness.
