Delikon Electromagnetic Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automation data and signal wire and cable

Electromagnetic frequencies can affect many sensitive electronics, and can cause a wide variety of different issues from a simple hiss on a communication line, to a total disruption of a safety critical signal. Cables can be a main source and receiver for EMI. As a source, the cable can either conduct electronic noise to other equipment or radiate the noise like an antenna. As a receiver, the cable can pick up EMI from other sources.

Delikon Electromagnetic Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automation data and signal wire and cable from signal distortion caused by nearby equipment and devices or prevent a stronger signal from leaking out and interfering with surrounding electronics. The outer braided shield of the over braided flexible conduit creates a barrier that separates the electric field surrounding the central conductor from anything outside. This is achieved by forming a metallic screen to absorb the electromagnetic interference that is being transmitted through the air. The shield effect is based on a principle used in a Faraday cage, the metallic screen completely surrounds the cables. The screen absorbs the transmitted signals, and causes a current within the body of the screen. By absorbing these transmitted signals before they reach the sensitive circuitry, the protected signal is kept clean of electromagnetic interference, maximizing shielding effectiveness.

Delikon Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector is used to enhance the cable structural and signal integrity, and to protect it against external environmental conditions such as water for dust ingress, chemical exposure, and hot metal sparks exposure, preventing cable failure as the result of impact and abrasion, and against harsh environmental conditions such as crushing forces, rodents and UV radiation. Delikon heavy series over braided flexible metal conduit is a combined foil and braided shielding. This increases shielding coverage. Delikon heavy series connector is tough, durable, and has an internal grounding clamp that provides proper shield termination and grounding to ensure the safety of workers and equipment.

Delikon Heavy Series Connector provides a shielding termination that provides a low impedance path to ground, ensuring high shielding effectiveness of the system. Delikon Heavy Series Connector makes sure the shields are bonded and grounded to equipment enclosure or electric cabinet.

Delikon Steel Mill Automation Cable Protection High Temperature EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector

	Cable protection hoses Descriptions / Features	Suitable connectors	EMC Shield Over Braided Flexible Conduit Catalog Page

YF-705	Galvanized steel strip core (with Nylon cord packing) PVC Covering Wire over-braid Trade size: 3/8"~4" Liquid-tight EMI/RFI shielding	Galvanised Steel Conduit, Smooth PVC Covering, Steel Overbraid (IP 67)	YF-705
		Galvanised Steel Conduit, Smooth PVC Covering, Liquid Tight, Metal Overbraid. It is designed to protect sensitive electronic circuits in demanding industry applications.
SM-701	Galvanized steel strip core (Interlocked constructions) PVC covering Metal wire over-braid Trade size: 3/8"~4" Liquid-tight EMI/RFI shielding *High tensile strength	Galvanized Steel Conduit, Smooth PVC Covering, Steel Overbraid, High Strength	SM-701
		For high tensile strength applications.
YF-704	Galvanized steel strip core PVC covering Wire over-braid 5mm~6" trade size *Very Flexible Water-tight EMI/RFI shielding	Galvanized Steel Conduit with PVC Covering, Steel overbraid (IP 54)	YF-704
		BRAIDED Flexible metallic conduit, water proof, is typically used for steel mill machineries and petrochemical industries cable protection.
PBF	Corrugated Nylon core Wire over-braid 1/4"~2" trade size Very Flexible, Light Weight Liquid-tight EMI/RFI shielding	Corrugated Nylon Conduit, Steel Overbraid (IP 67)	PBF
		Braided corrugated nylon wiring conduits for all types of machinery. Light weight, especially suitable for Robot cables protections.
WNS/ORC	Wire over-braid 6mm - 25mm trade size Liquid-tight Oil resistant EMI/RFI shielding Model ORC features an inner hose of high quality NBR rubber	Oil Resistant Conduit, Steel Overbraid (IP 67)	WNS / ORC
		Oil Resistant Flexible Conduit is especially suitable for wiring machine tools, and hydraulic presses, which are subjected to moisture from coolant, oils and fluids.
SM70001	Galvanized steel strip core Wire over-braid 5mm~6" trade size All metallic for high temperature applications EMI/RFI shielding High Temp.	Galvanized Steel Conduit, Steel overbraid (IP 40)	SM-70001
		Overbraided Flexible Steel Conduit with Steel Braid, resists hot metal splashes. It is resistant against tensile stresses and transverse pressure.
AT-SL-BRAIDED	Metal wire over braided small bore tubing 3.5mm - 12.7mm ID. All metallic for high temperature applications EMI/RFI shielding	Stainless Steel Conduit, Steel Overbraid (IP 40)	AT-BRAIDED
		High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible square locked metal tubing for optimum protection. It provides increased abrasion resistant, improved EMI screening, and resists hot metal splashes. Most suitable for industry and automobile wiring harness.
SC	Inner Stainless steel flexible hose with fibre glass cord packing Triple layers stainless steel wire braidings *high level of thermal resistance for combustion equipment wiring	Triple Stainless Steel Over Braided Flexible Stainless Steel Conduit (IP 50)	SC
		Delikon Heavy Series Triple Layers Stainless Steel Wire Over Braided Flexible Stainless Steel Conduit for combustion equipment power and data cable protection

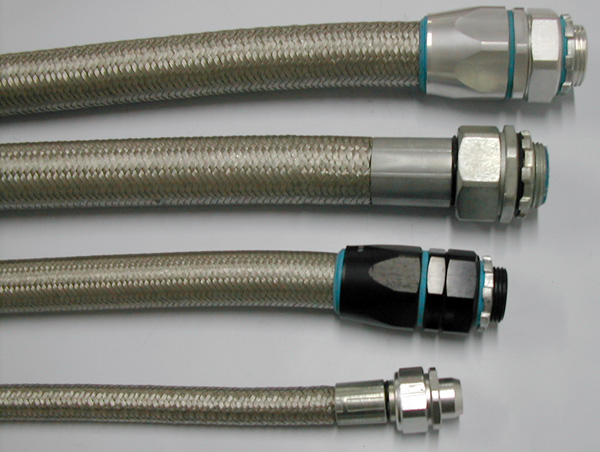

Connectors For Braided Flexible Electrical Conduit Systems	EMI/RFI SCREENING

typically used for machineries, mining and petrochemical industrial cable protection braided flexible conduit 1/4"~4" trade size EMI/RFI shielding Resists hot metal splashes Abrasion resistant braided flexible conduit These connectors clamp the braiding securely. And Delikon braided flexible conduits systems offer highly flexible screening solutions for most static or flexing applications.

EMI/RFI manifests itself in many ways and can be conducted by radiation or through mains cable and earthing connections. The impact of this can be critical to the performance of vital equipment that may be used in many different market sectors, from hospitals and nuclear plants through to industry automation installations and many other demanding environments. To provide excellent protection and immunity from electromagnetic interference, Delikon has introduced a complete line of Over braided Flexible Conduit systems to meet your tough wiring requirements: braided flexible conduit

	DMA DMB YABS YABS
	YABR YABR (RED)
Flexible Conduit Systems For Healthcare & Food Manufacturing Cable Management Delikon offers a complete solution for food manufacturing plants and healthcare environments. Braided flexible conduits, liquid tight metal conduits and a range of connectors complete the offering.
	YABR SWAGE FITTINGS YABR (BLACK)

Overbraided Flexible Steel Conduit For High Temperature Wiring Inherently low fire hazard (ILFH), Braided Flexible Metal Conduit is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. This conduit also offers excellent protection to cables against hot metal particles, and immunity from electromagnetic interference. Most suitable for use in Hazardous Locations, industrial environments and high temperatures.

Overbraided systems--- braided flexible conduit braided flexible conduit braided flexible conduit Electric Flexible Conduit systems for EMI & RFI shielding, abrasion and hot metal splashes resistance braided flexible conduit braided flexible conduit braided flexible conduit braided flexible conduit Comprises a standard conduit construction, with metallic overbraid. flexible conduit flexible conduit Typical electric wiring and cables protections applications where the following is a consideration:
Electromagnetic Interference (EMI) computers rooms telecommunications control systems braided flexible conduit Abrasion resistance braided flexible conduit* railway rolling stock heavy duty industrial cable management applications braided flexible conduit Mechanical integrity braided flexible conduit security/CCTV anti-vandal applications Hot metal splashes resistance steel & iron mills petrochemical plants
