Delikon
Shielding Termination
Heavy Series Connector and Over Braided
Flexible Conduit are designed to combat the
effects of RFI EMI in cables
Industrial applications such as the factory
floor are typically electrically noisy
environments. Electrical noise, either
radiated or conducted as electromagnetic
interference EMI, can seriously disrupt the
proper operation of other equipment. Cables
can be a main source of transfer for EMI,
both as a source and receiver. As a source,
the cable can either conduct noise to other
equipment or act as an antenna radiating
noise. As a receiver, the cable can pick up
EMI radiated from other sources.
Switching heavy loads, inductive heaters,
large transformers can all present high
levels of both conducted and radiated EMI.
Placing signal cables next to power cables
can also allow power line noise to couple
onto the signal lines.
Delikon Over Braided Flexible Conduit and
Heavy Series Connector are designed to
combat the effects of RFI EMI in cables. The
over braiding of the conduit provides a low
resistance path to ground and conducts to
ground any of the noise it has picked up.
Delikon Heavy Series Connector provides a
shielding termination
that provides a low impedance path to
ground, ensuring high shielding
effectiveness of the system. Delikon Heavy
Series Connector makes sure the shields are
bonded and grounded to equipment enclosure
or electric cabinet. A 360-degree metal
split clamp slip around the outer stainless
braiding and the clamp is directly in
contact with the shield when the connector
back shell with a
cone shape interior
is tightened.
The heavy series connector clamps tightly
around the braiding and grounds the
shielding, which helps to protect the cables
against EMI noise.
Delikon Over Braided Flexible Conduit and
Heavy Series Connector also protects a cable
mechanically from scraps and abrasion and
environmentally from dust, moisture and
spills. |
 |
|
 |
| |
Over Braided Flexible Conduit
Fittings,
EMI Shielding Termination
(

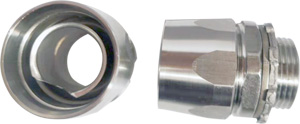

Straight Connector:
YABS.
90 Degrees
Connectors:
YALS.
45 Degrees Connectors:
YAHS) |
 |
|
All metal construction, heavy
seriesConduit Fittings are most
suitable for
high
temperature wirings.
Or with plastic sealing components for
liquid tight
applications. Metal clamping ring design provides
positive shielding termination.
Most suitable for over braided flexible conduit and flexible
metal
conduit. Trade size: 1/4" -
6"
Available with G, ISO228-1,
Metric, PF;
NPT or PG threads.
Male
or Female
Threads
|
 |
|
 |
Delikon Heavy Series
Over Braided Flexible Conduit, Heavy Series Braided Conduit Fittings
protect servo, feedback motor cables, PLC cables, control cables,
instrumentation cables.
Reducing or eliminating electromagnetic interference (EMI)
for cables. Delikon heavy series over braided flexible conduit
and connector are particularly recommended for protecting supply cables
between frequency converters and servo motors.
For the wiring of machines and system controls, Delikon heavy series
braided conduit connector provides High Pull-Out Resistance, Robust
Performance, Long Life Expectancy, Fastest and Easy installation. |
|
|
|
 |
 |
| |
|
|

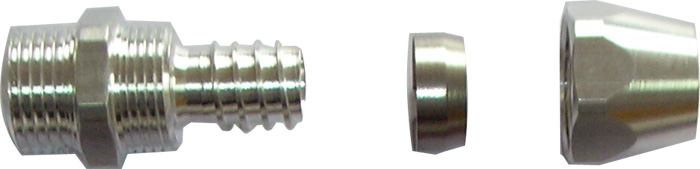

For use with braided
flexible conduit systems: Positive clamping of both the inner
conduit and braiding |
 |
|
Straight
Heavy
Series Flexible Conduit Fittings |
|
 |
| |
|
Straight Connector
(fixed type) |
Model |
Size |
0 degree
Heavy Series
Fixed |
Model |
Size |
|
 |
YABS-02B |
1/4" |
YABS-20B |
2" |
|
YABS-03B |
3/8" |
YABS-24B |
2-1/2" |
|
YABS-04B |
1/2" |
YABS-30B |
3" |
|
YABS-06B |
3/4" |
YABS-40B |
4" |
|
YABS-10B |
1" |
YABS-50B |
5" |
|
YABS-12B |
1-1/4" |
YABS-60B |
6" |
|
YABS-14B |
1-1/2" |
|
|
|
| |
|
Straight Connector (swivel type) |
Model |
Size |
0 degree
Heavy Series
Swivel |
Model |
Size |
|
 |
YABSR-02B |
1/4" |
YABSR-14B |
1-1/2" |
|
YABSR-03B |
3/8" |
YABSR-20B |
2" |
|
YABSR-04B |
1/2" |
YABSR-24B |
2-1/2" |
|
YABSR-06B |
3/4" |
YABSR-30B |
3" |
|
YABSR-10B |
1" |
YABSR-40B |
4" |
|
YABSR-12B |
1-1/4" |
|
|
|
| The external thread
swivels about
the main body. It can be used with threaded entries or knockout secured
with a locknut. Most suitable for installations requiring
motion,
vibration
and bending. Delikon heavy series
Swivel Connector protects data or power
cables of electric motor,blower, pump,polishing machine, grinding
machine, or any other applications where there is
vibration |
| |
| |
 |
|
90 Degrees
Heavy Series Conduit Fittings |
|
|
| |
|
90 Degrees Connector
(fixed type) |
Model |
Size |
90 degrees
Heavy Series
Fixed |
Model |
Size |
|
 |
YALS-03B |
3/8" |
YALS-14B |
1-1/2" |
|
YALS-04B |
1/2" |
YALS-20B |
2" |
|
YALS-06B |
3/4" |
YALS-24B |
2-1/2" |
|
YALS-10B |
1" |
YALS-30B |
3" |
|
YALS-12B |
1-1/4" |
YALS-40B |
4" |
|
| |
90 Degrees Connector
(swivel type) |
Model |
Size |
90 degrees
Heavy Series
Swivel |
Model |
Size |
|
 |
YALSR-03B |
3/8" |
YALSR-14B |
1-1/2" |
|
YALSR-04B |
1/2" |
YALSR-20B |
2" |
|
YALSR-06B |
3/4" |
YALSR-24B |
2-1/2" |
|
YALSR-10B |
1" |
YALSR-30B |
3" |
|
YALSR-12B |
1-1/4" |
YALSR-40B |
4" |
|
| The external thread
swivels about
the main body. It can be used with threaded entries or knockout secured
with a locknut. Most suitable for installations requiring
motion,
vibration
and bending. |
| |
| |
|
|
|

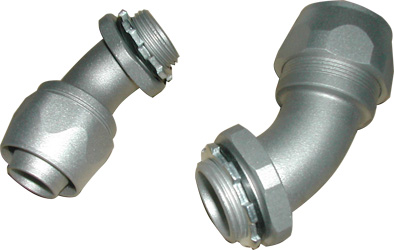

45 Degrees
Heavy Series Conduit Fittings |
|
|
| |
|
45
Degrees Connector
(fixed type) |
Model |
Size |
45 degrees
Heavy Series
Fixed |
Model |
Size |
|
 |
YAHS-02B |
1/4" |
YAHS-14B |
1-1/2" |
|
YAHS-03B |
3/8" |
YAHS-20B |
2" |
|
YAHS-04B |
1/2" |
YAHS-24B |
2-1/2" |
|
YAHS-06B |
3/4" |
YAHS-30B |
3" |
|
YAHS-10B |
1" |
YAHS-40B |
4" |
|
YAHS-12B |
1-1/4" |
|
|
|
| |
|
45
Degrees Connector
(swivel type) |
Model |
Size |
45 degrees
Heavy Series
Swivel |
Model |
Size |
|
YAHSR-02B |
1/4" |
YAHSR-14B |
1-1/2" |
|
YAHSR-03B |
3/8" |
YAHSR-20B |
2" |
|
YAHSR-04B |
1/2" |
YAHSR-24B |
2-1/2" |
|
YAHSR-06B |
3/4" |
YAHSR-30B |
3" |
|
YAHSR-10B |
1" |
YAHSR-40B |
4" |
|
YAHSR-12B |
1-1/4" |
|
|
|
| |
|
|
Connectors for
flexible metallic conduit, for braided flexible conduit.
All Heavy Series Flexible Conduit Metal
Connectors are
Available with G,
ISO228-1, Metric, PF; NPT or PG threads.
Male or
Female threads. |
|
|
 Download
the catalog page for DELIKON YABS, YALS,
YAHS
Heavy Series Conduit Connector
for braided conduit
in
PDF File format.
Also refer to
Heavy Series Over Braided Flexile Conduit for
industry cable management. |
 |
|
|
Most suitable
For
Industry Automation and
Control Cables Management |
|
|
|
Delikon heavy series
over braided flexible conduit and heavy series braided conduit fittings
protect electrical and control cables in Aluminum Smelting Plant,
Aluminum Foundry, Aluminium Extrusion Plant, Aluminum Finishing Plant.
Delikon heavy series over braided flexible conduit systems are also
widely used in steel mills or other metal industry. |
|
 |
|
Delikon
heavy series over braided flexible conduit systems are superior in their
ability to withstand heat, moisture and molten material splash and are
highly resistant to mechanical and physical abuse. The overall stainless
steel braid provides
slag protection. |
 |
|
Delikon EMI Shielding
Heavy Series Over Braided Flexible Conduit System protects metal
industry automation drive and control data and signal cables for high
noise level locations of heavy processing plants such as steel mills and
foundries. Delikon heavy series
connector with metal clamping ring design provides positive shielding
termination. Industrial applications such as the factory floor are
typically electrically noisy environments. Electrical noise, either
radiated or conducted as electromagnetic interference (EMI), can
seriously disrupt the proper operation of equipments. The primary way to
combat EMI in cables is through the use of shielding. Delikon heavy
series over braided conduit system is providing additonal mechanical
protection as well as EMI shielding to drive and control cables of
intelligent industry automation to ensure a frictionless flow of data
and material. |
 |
 |
Delikon
Heavy Series Over Braided Flexible
Conduit
and Fittings
for steel industry
automation cabling solution
Delikon Heavy Series Over Braided Flexible
Conduit and Braided Conduit Fittings are designed for steel industry
control panels wirings, PLC wirings, Motion Control wiring, power and
data cable protection, both for hot and cold rolling mills and for
others specific to the steel industry.
In both control cabinets and system cabling, the key factor in achieving
high availability of your electronic and electrical system is secure and
fail safe connection of all components. Therefore, you need Delikon as a
reliable single-source partner who can deliver high quality electrical
flexible conduit and fittings.
Our Heavy Series Over Braided Flexible Conduit and Fittings systems
provide you with a future-proof answer to increasingly exacting plant
and machinery cable protection requirements. Engineered to meet the
needs of all industry sectors especially the steel industry in a
virtually limitless range of tasks, the superiority of our over braided
flexible conduit systems provides installation efficiency, flexibility,
reliability and cost effectiveness - in every application. |
|
|
|
Related Products of
Flexible Conduits and Fittings for industry cable management |
|
|
 |
Delikon
Pharmaceutical Industry
Cable Management System
Delikon is the leading manufacturer of complete Stainless Steel Flexible
Conduit System. Our Stainless Steel Conduit System is popular with our
customers:
Quick and easy to install.
Easy-to-clean.
Long life and durable. |
Delikon Complete
Stainless Steel
Liquid Tight Conduit, Stainless Steel
Liquid Tight Connector System for Food, Pharmaceutical, Brewing, Dairy
and Soft Drinks industries
As the market leader for electrical
flexible conduit system, Delikon is proud to be referred to as the
leading manufacturer of Stainless Steel Cable Management Systems
including
Small Bore Stainless Steel Flexible Conduit,
Stainless Steel
Liquid Tight Conduit and Stainless Steel Liquid Tight Connector. All of
our stainless steel products are ideally suited to the Food,
Pharmaceutical, Brewing, Dairy and Soft Drinks industries, where
hygienic, durable and corrosion-resistant solutions are required. |
 |
Delikon Aluminum
Liquid Tight Connector, Metal Liquid Tight Conduit, The complete cable
management solution for protection of carpet and textile industry
intelligent automation electrical wiring
The textile industry is one of the most automated industries of all.
Delikon Aluminum Liquid Tight Connector, Metal Liquid Tight Conduit
offers a complete cable management solution for protection of carpet and
textile industry electrical wiring. Aluminum Construction, Easy Field
Installation, No Rust or Unsightly Discoloration, Protection for
Vibration Environments, all these are the main benefits of choosing
Delikon Aluminium Liquid Tight Connector for protecting the important
drive and control electrical and data cales in intelligent automation
applications. |
|
|
|
Delikon also offers customly produced connectors for special
electrical wiring applications. |
 |
 |
 Delikon
G, ISO 228-1, PG, Metric, and NPT Thread Liquid Tight Insulated
Connectors
Delikon G, ISO 228-1, PG, Metric Thread, and
NPT Liquid Tight Insulated Connectors provide a reliable connection for
liquid tight flexible metal conduit and PVC coated flexible metal
conduit . The compact design results in a connector that could be
installed in a tight space. Delikon liquid tight connectors are often
found on power plant, railway station, and various other equipment,
enclosures, junction boxes. |
|
Heavy Serices Overbraided Flexible
Steel Conduit System For High Temperature Wiring |
|
 |
Protective Stainless Steel OverBraided
Flexible Metal Conduit for Industry Wiring
Braided Flexible Metal Conduit is widely used to counter mechanical
stress and is highly flexible, and it is resistant against tensile
stresses and transverse pressure.
This conduit also offers excellent protection to cables against hot
metal particles, and immunity from electromagnetic interference. Most
suitable for use in Hazardous Locations, industrial environments and
high temperatures.
Over braided flexible conduit is particularly used in (mechanical)
critical situations, such as machine-building, steel works but also in
transport systems and security.
For
Industry Automation |
|
Delikon Metals
Industry Automation Wiring High Temperature Heavy Series Over
Braided Flexible Metal Conduit and High Temperature Heavy Series
Connector
 Delikon is
the leading supplier of High Temperature Heavy Series Over Braided
Flexible Metal Conduit and High Temperature Heavy Series Connector
for protection of electrics and automation cables for the metals
industry. Steel plants, especially rolling mills as well as
processing lines, depend mainly on uninterruptible processes and on
the quality of the steel rolled. As a result, cable protection
technology plays an essential role. Delikon High Temperature Heavy
Series Over Braided Flexible Metal Conduit and High Temperature
Heavy Series Connector constructed entirely of metals, are ideally
suited for foundries, glass manufacturing, steel mills and other
high temperature processes, providing a cable flexible conduit
system for longer life and reduced down time. Delikon High
Temperature Heavy Series Over Braided Flexible Metal Conduit and
High Temperature Heavy Series Connector offer mechanical impact and
crushing protection as well as protection against
hot sparks and
slag.
In addition to the benefit of protection against damage to cable
components from cable motion and use, proper shielding provided by
Delikon High Temperature Heavy Series Over Braided Flexible Metal
Conduit and High Temperature Heavy Series Connector is essential to
many applications as it can keep out unwanted external interference.
In many applications, electromagnetic interference EMI is a threat
to signal integrity. Shield quality is of particular importance in
small signal or high frequency applications where a slight variation
can have significant impact. All electrical cable will radiate
energy to, and pick up energy from, its surroundings. As such,
shielding of Delikon flexible conduit system can also be used to
contain the electromagnetic energy radiated by a cable, which in
turn can protect nearby sensitive components. |
 |
