Liquid-tight Flexible Metallic Conduit   ( YF-706 )

Liquidtight steel conduit (Liquid Tight flexible metal conduit) is designed for a variety of installations requiring motion, vibration and bending. It offers good mechanical and moisture protection to enclosed conductors. ( Protecting wiring in wet locations )
Liquid tight metal conduits Superior liquidtight conduit system

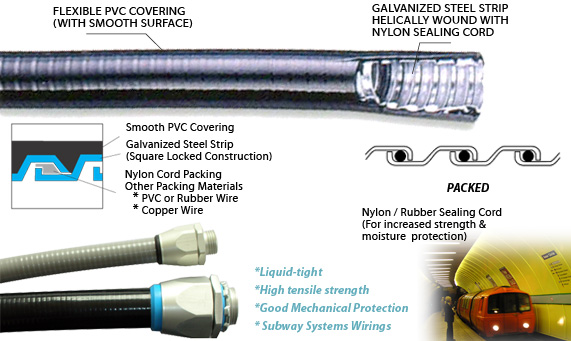

*Galvanized steel strip core with more convolutions
per meter than other conduits — for greater crush strength. *Smooth Heavy Duty PVC sheath *Trade size: 3/8"~4" (square locked, with Nylon cord packing);
*Liquid-tight  *High tensile strength 		 Liquid-tight conduit is ideal when used with liquid tight fittings for applications where a high degree of liquid tightness is required.
This product is suitable for a number of general purpose applications and ideal for environments with lots of oils and greases such as machine tool workshops.
Liquid-tight flexible Metal conduits

MADE FROM YF-708 FLEXIBLE METALLIC CONDUIT WITH HEAVY DUTY PVC COVERING:

*Durable and long life.
*High tensile strength.
*Inner core made from  galvanized steel strip.
*Square locked construction with packing for more  strength and smooth PVC covering surface.
*Liquid tight. Complete protection against most liquids and moisture vapor. Resists sunlight, heat, oil and chemical degradation.

Applications:
Liquid-tight flexible conduit provides protection for wiring circuits located in extremely wet or damp areas. It is also suitable for machines, tools and equipment where ruggedness is required. Now in extensive use on presses, welders, pumps, blowers, grinders, conveyors, machines and portable tools, automated lines, and in construction, industry, commerce and transportation.

Related Products:
Liquid tight flexible conduits with wire over-braid for more abrasion resistance and EMI screening.
>>> Model YF-705

Braided Liquidtight Flexible EMI Shielding steel Conduit




>>> Model YF-604 (with copper bonding wire)   Computer Blue Liquid-tight

Computer blue liquid tight flexible metal conduit


  Flexible Conduit Assembly
   Flexible conduit assemblies
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meter/Coil
MIN. MAX. MIN. MAX.
YF-70603 3/8" 12.5 13.0 17.8 18.3 60 50
YF-70604 1/2" 16.1 16.6 21.3 21.8 80 50
YF-70606 3/4" 20.7 21.3 25.9 26.4 100 30
YF-70610 1" 26.3 26.8 33.3 33.8 150 30
YF-70612 1-1/4" 35.0 35.5 42.6 43.1 180 20
YF-70614 1-1/2" 40.0 40.5 47.6 48.0 220 20
YF-70620 2" 51.0 51.5 60.3 60.8 250 15
YF-70624 2-1/2" 63.0 63.7  72.2 73.0 300 10
YF-70630 3" 78.0 78.8 88.2 89.0 450 10
YF-70640 4"  101.8 102.8 113.2 114.0 600 5
YF-70650 5"  126.0 128.0 133.0 135.0 750 5 (MOQ:50m)

Heavy duty, non-wrinkling smooth PVC jacket—Superior performance and appearance
 Liquidtight Steel Conduits System

 Liquid-Tight Flexible
Metal Conduit (LFMC)
*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.                 Also Refer To: Braided Flexible Metal Conduit System
refer to Braided Conduit System for heavy industry Braided Flexible Metal Conduit Liquid tight connectors,fittings
CONNECTORS & FITTINGS FOR
LIQUID TIGHT FLEXIBLE CONDUIT

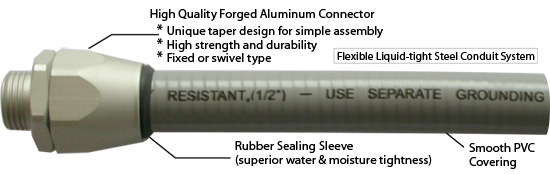

Suitable connectors ( LT Metal Connectors )
Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw)
Y Y Y Y Y Y Y Y Y Y Y Y
