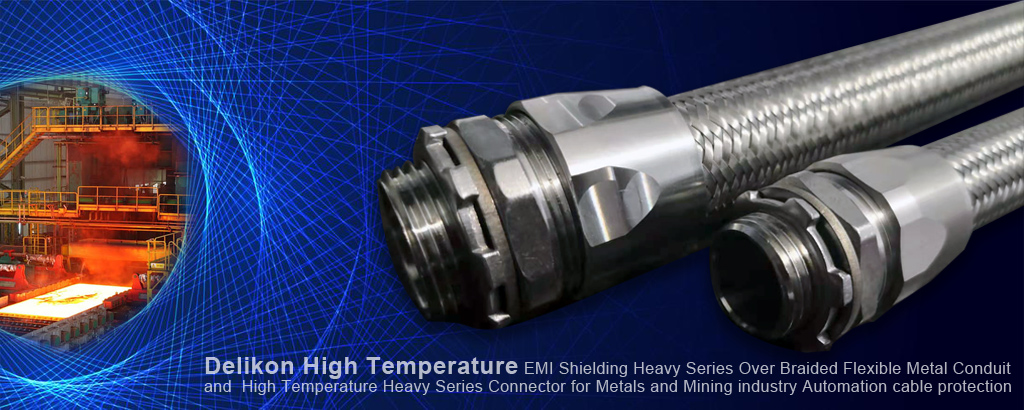

  Protective Braided Flexible Metal Conduit for Steel Mill Cables ( SM70001 )

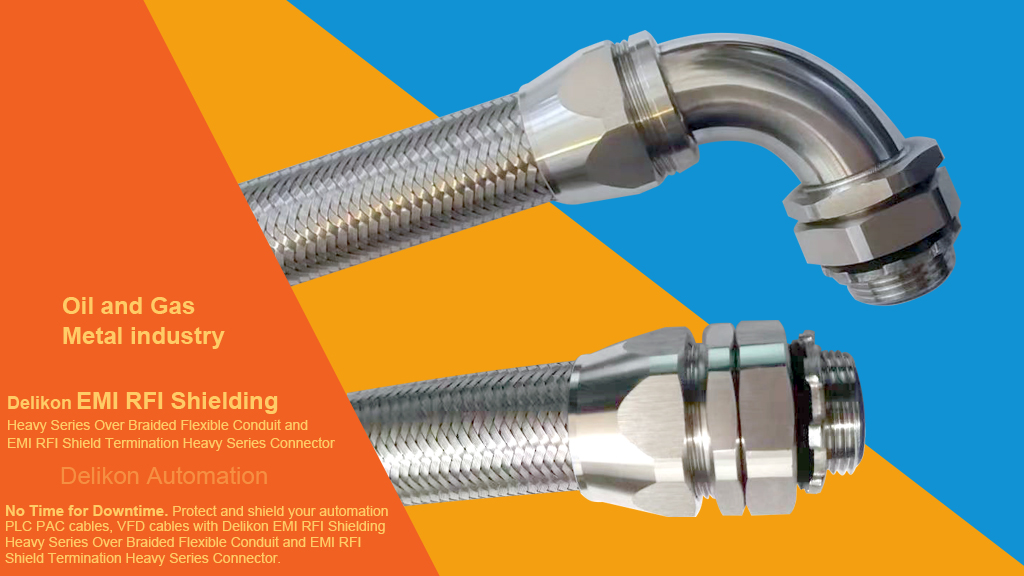

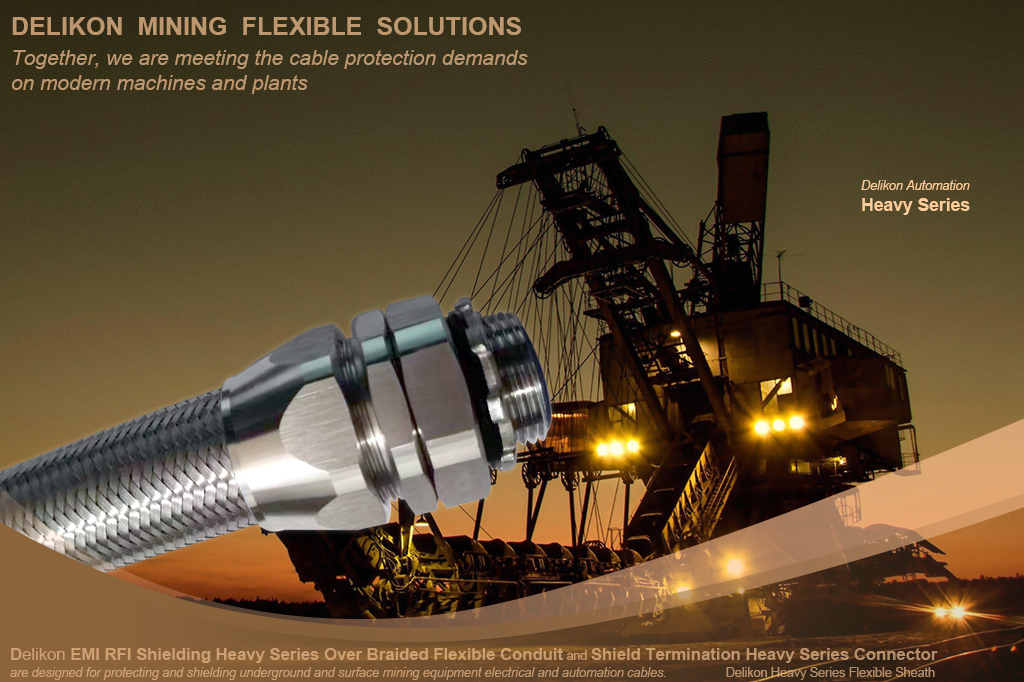

Braided Flexible Metal Conduit

typically used for machineries cables and wirings protection,provides high mechanical protection
As part of the Braided system range, this braided flexible metal conduit has
inherent fire protection
, high pull off strength and offers EMI screening.
protective metal conduit

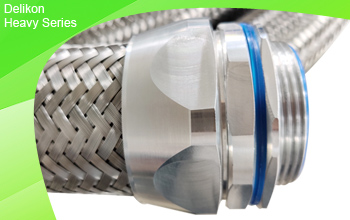

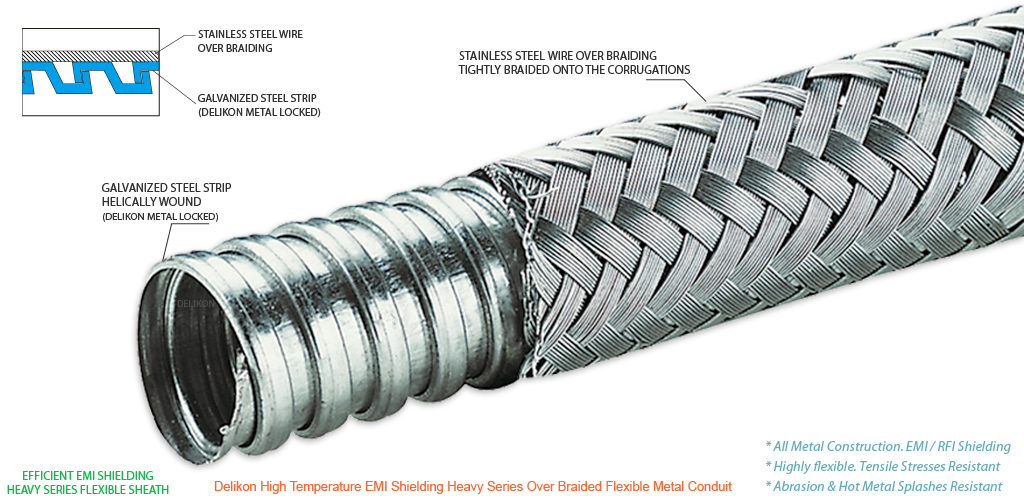

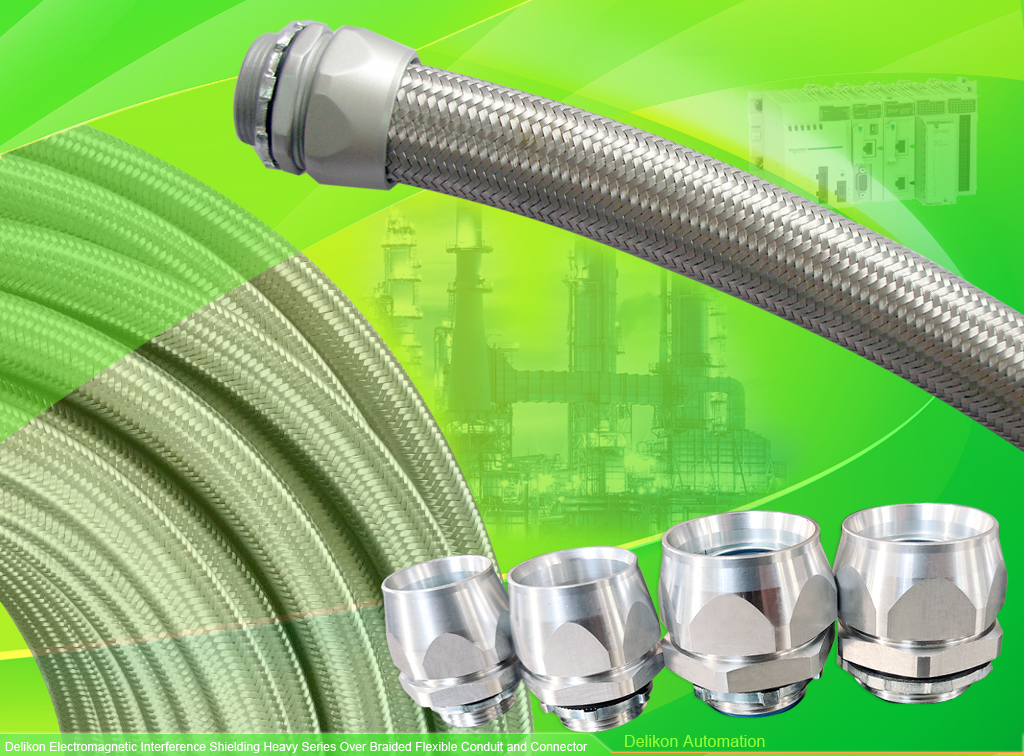

*Galvanized steel helically wound with metal wire over-braiding protective metal conduit
*3/8"~4" trade size *EMI/RFI shielding *For heavy mechanical stress protective metal conduit
*Resists high temperature and hot metal splashes *All metallic constructions

For automatic welding line wirings

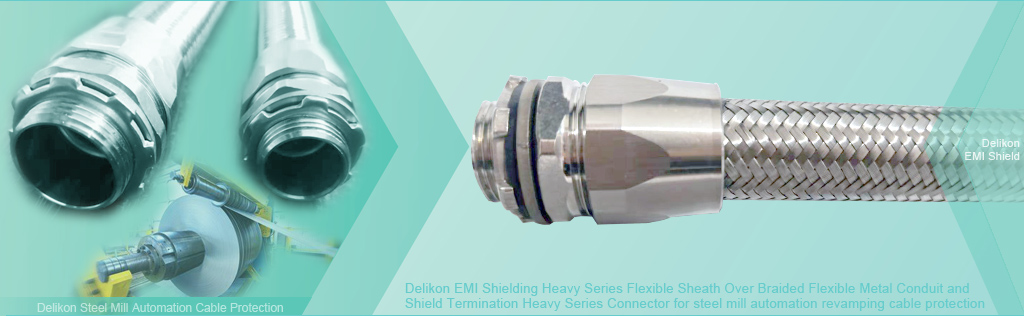

Over Braided flexible steel conduit,all metal construction for steel mill cable protection

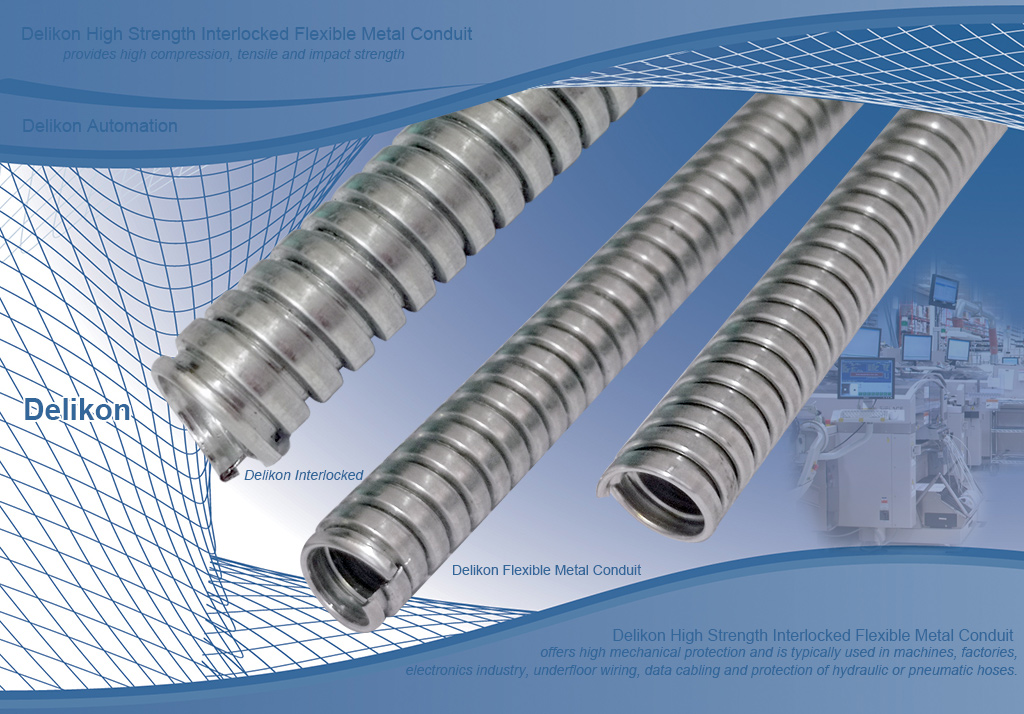

  • MADE FROM TYPE YF-703 CONDUIT WITH WIRE OVER-BRAID:
    *Wire over-braiding provide more abrasion resistant and EMI/RFI shielding (EMC screening).
    *Durable and long life.
    *Inner core made from  galvanized steel strip.
    *Low fire hazard
    *Resists hot metal splashes and high temperature
    *Overbraided conduits are particularly suitable for installation in vibration environments.

  • Applications:
    Most suitable for use in  industrial environments and high temperatures, such as wiring welding machines and metal casting machines; Also  for demanding industrial environments where higher abrasion resistance or EMI screening are required.

  • Related Products:
    Flexible conduits with PVC covering and over-braiding.
    >>> Model YF-704
    with pvc covering for water proof applications braided small ID tubing

    >>> Model PBF

    Braided Nylon Conduit for Industry RobotsBraided
    Nylon Conduit
    system



    Stainless steel constructions
    Stainless Steel SMALL BORE
    Fiber Optics Flexible Conduit

    Liquid-tight Flexible Metal Conduit

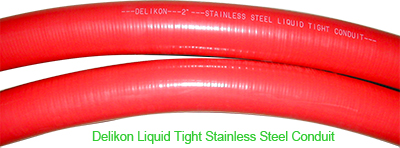

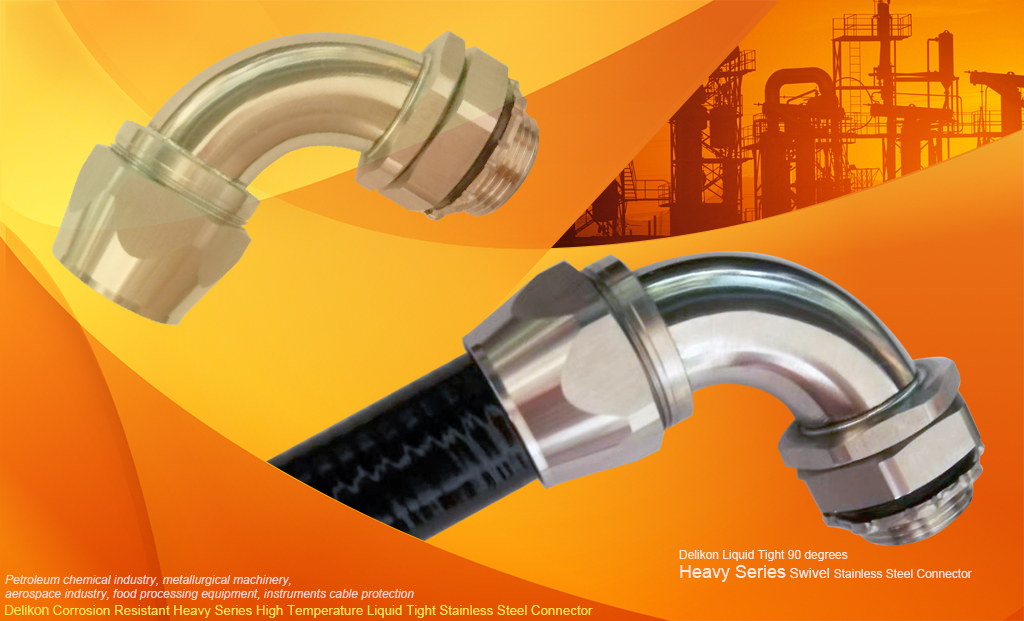

    Smooth PVC coated liquid-tight flexible steel conduit

    Braided flexible conduit assembly

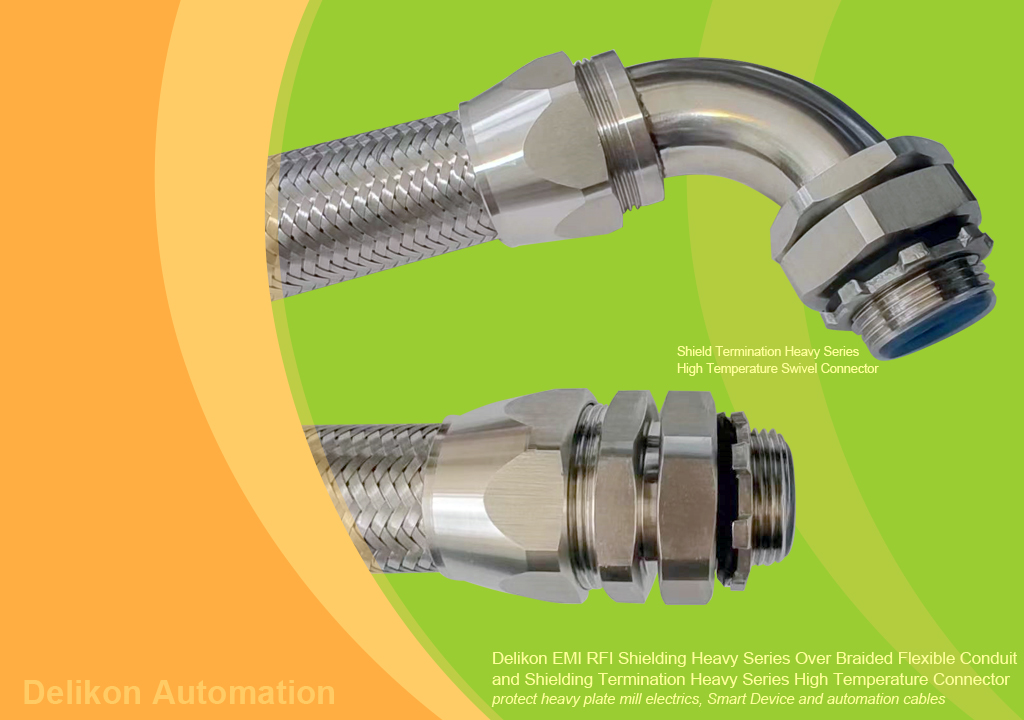

    Over-braided flexible conduit system with connectors


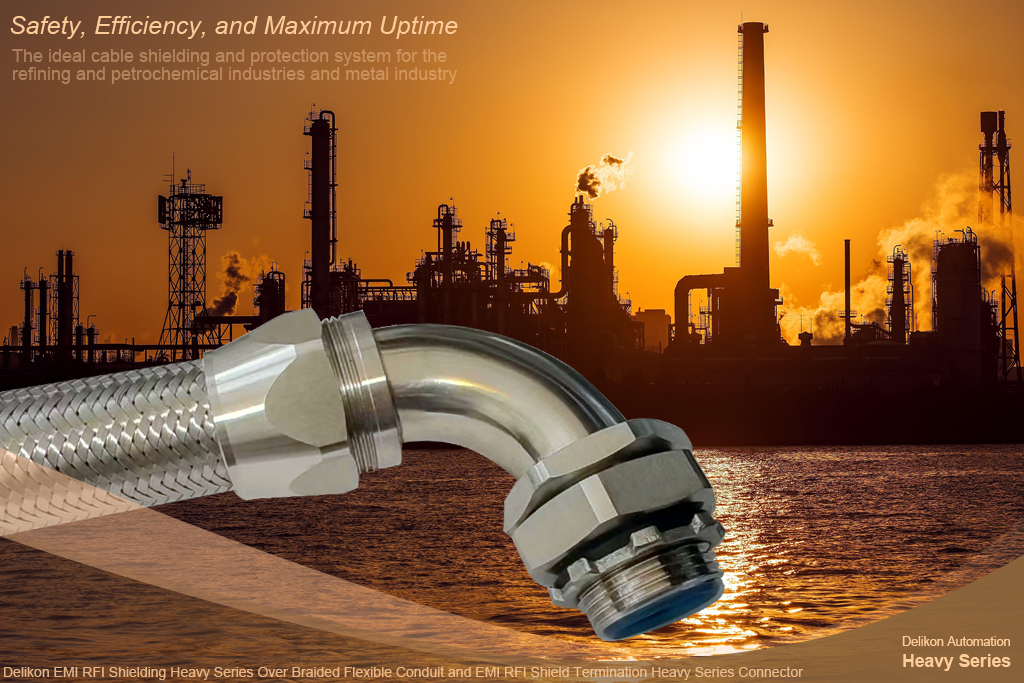

    FLEXIBLE OVERBRAIDING CONDUIT SYSTEMS


    Braided Flexible Metal Conduit for Heavy Mechanical Stress

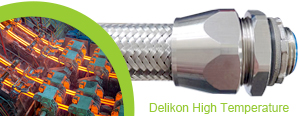

    Braided Flexible Metal Conduit for exposure to heat

Braided Flexible Metal Conduit is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. Braided conduit also offers excellent protection to cables against hot metal particles, and immunity from electromagnetic interference.

Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil

Min.

Max.

Min.

Max.

SM-7000102 1/4" 9.7 10.2 14.5 15.0 40  100
SM-7000103 3/8" 12.3 12.8 16.6 16.8 50 50
SM-7000104 1/2" 15.8 16.2 20.5 20.9 65 50
SM-7000106 3/4" 20.8 21.3 25.7 26.2 75 50
SM-7000110 1" 26.4 27.1 32.6 33.1 100 50
SM-7000112 1-1/4" 35.0 35.5 41.0 41.5 125 30
SM-7000114 1-1/2" 40.1 40.6 46.8 47.3 150 30
SM-7000120 2" 50.5 51.2 58.3 59.0 175 20
SM-7000124 2-1/2" 62.9 63.9 73.1 74.1 200  10
SM-7000130 3" 77.0 78.0 88.0 89.0 225  10
SM-7000140 4" 99.6 101.6 109.7 111.5 275  10
SM-7000150 5" 125.0 127.0 137.0 139.0 350 5
SM-7000160 6" 150.0 153.0 162.0 164.5 480 5

GALVANISED STEEL CONDUIT WITH STEEL OVERBRAIDING
Strip-wound flexible metallic conduit, steel wire braiding

GALVANISED STEEL CONDUIT WITH STEEL OVERBRAIDING, This conduit utilises strip wound steel conduit as a core, which is then over-braided with steel. The wire over braid provides abrasion resistance and protects the core from mechanical damage. Braided steel conduits provide high mechanical strength yet offer high flexibility. The conduit, at full extension, offers high tensile strength without elongation thus protecting cables from being
over-tensioned or stretched. It will provide an enhanced level of EMI screening and a wide operating temperature. Resists hot swarfs.
*All sizes and dimensions listed above are subject to manufacturing tolerances. Flexible Metal Conduit for Heavy Mechanical Stress
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
Also Refer To:
Braided Liquid-Tight Conduit

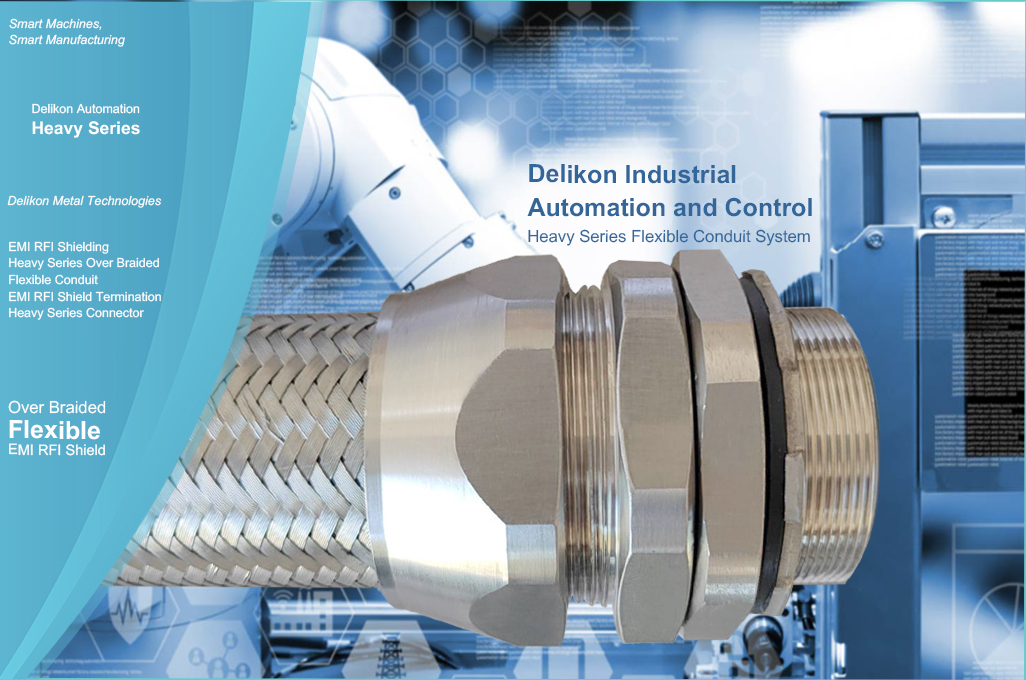

Over Braided Flexible Steel Conduits for heavy industryFor Automation Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT

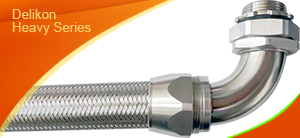

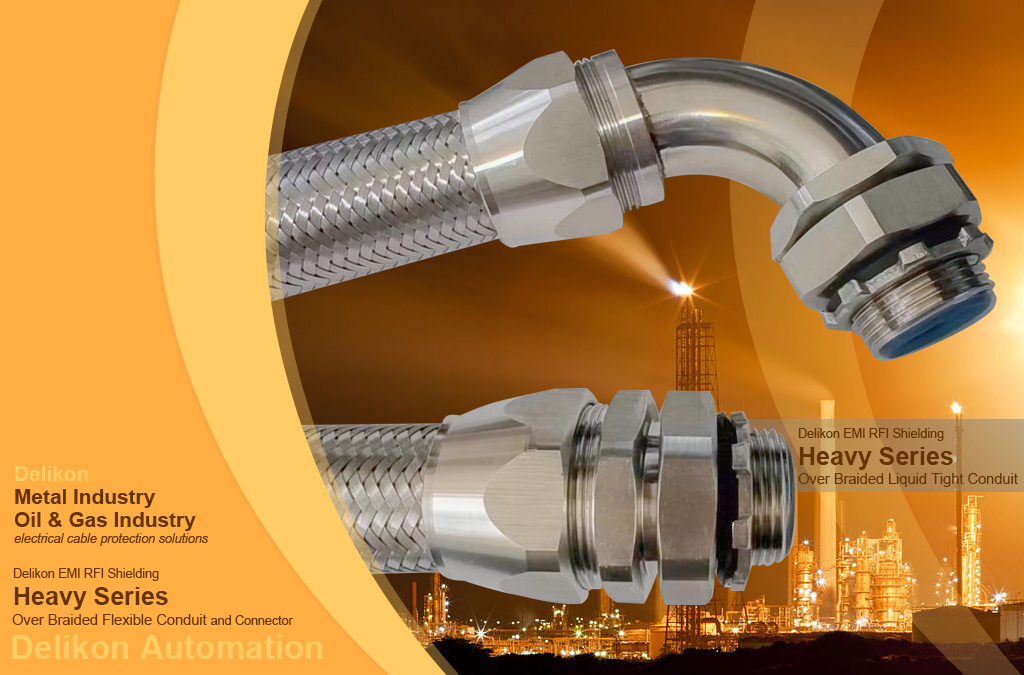

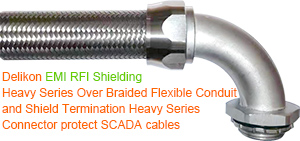

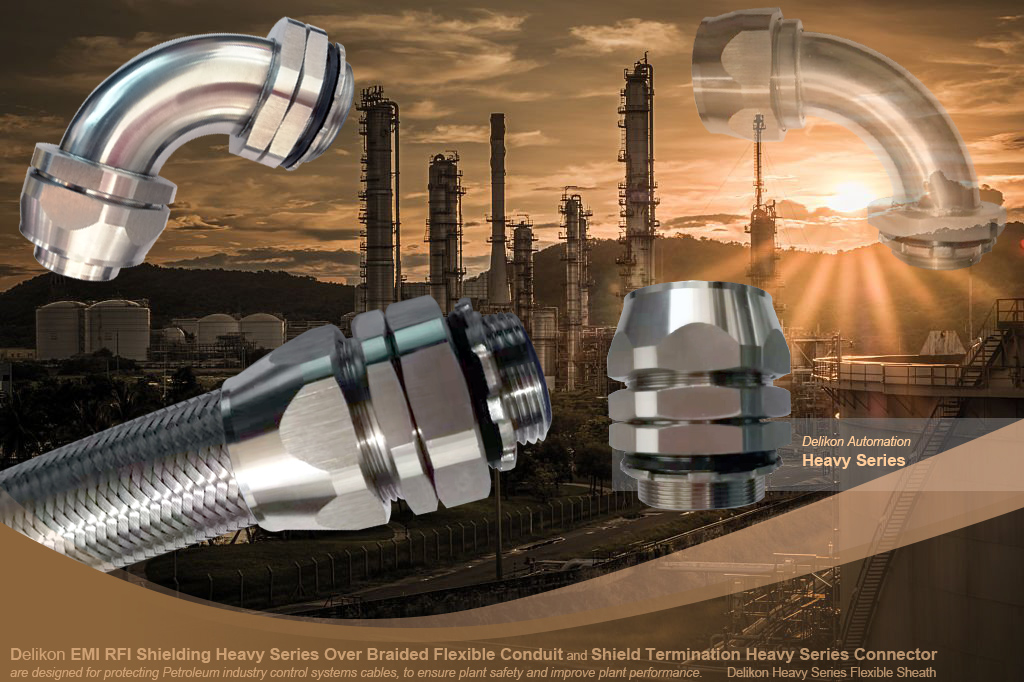

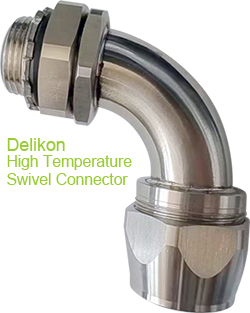

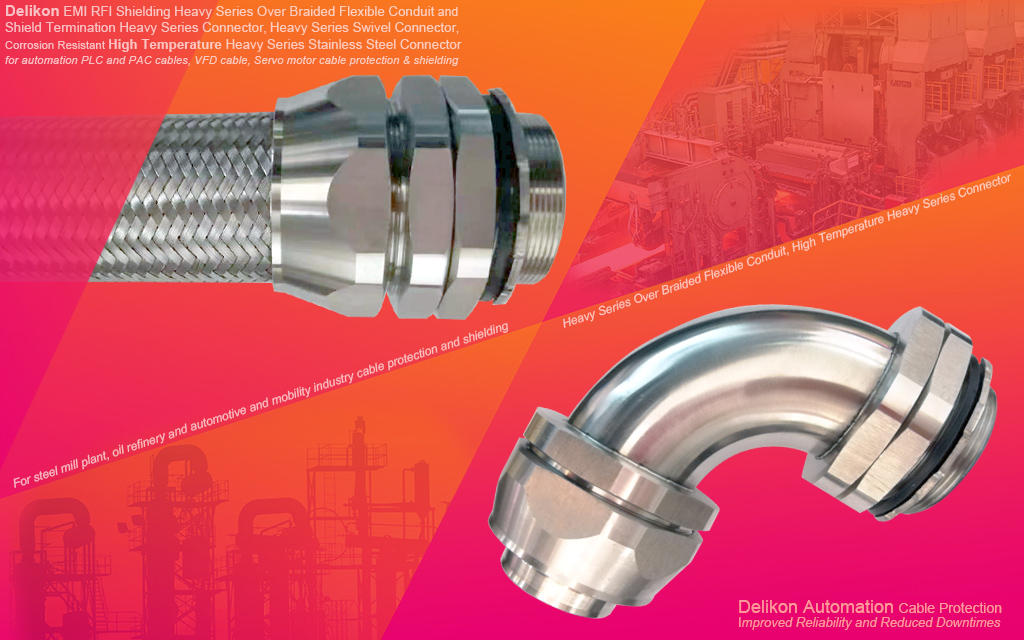

Suitable connectors

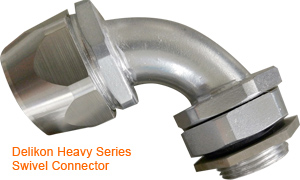

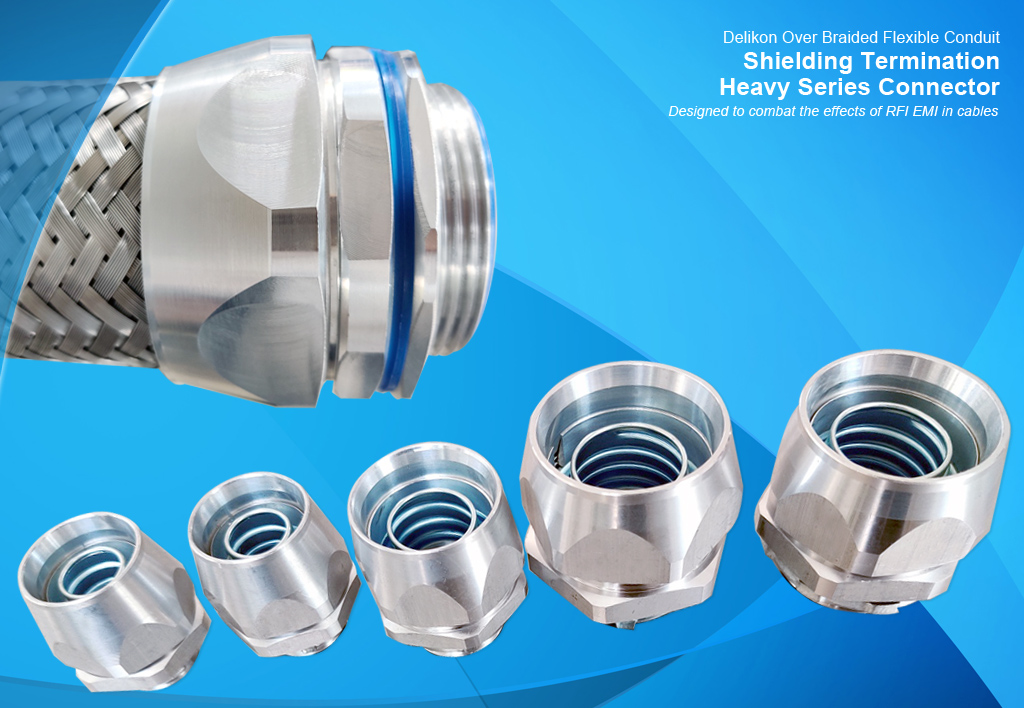

Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw)
