Small Bore Stainless Steel Flexible Conduit Armor,Over Braided Flexible Stainless Steel Conduit,Automotive Wiring Harness Flexible Conduit

Small Bore Stainless Steel Flexible Conduit ( AT ) delikon Flexible stainless steel conduit Over Braided Flexible Stainless Steel Conduit for optimum cable protection

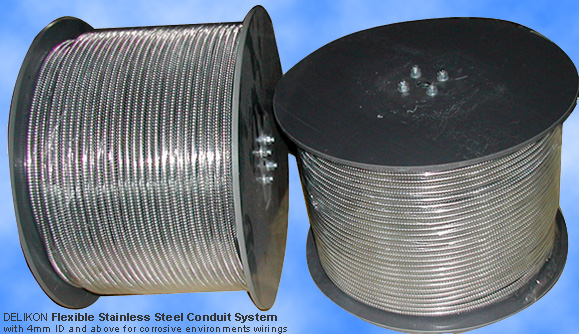

Small bore instrumentation tubing, Flexible metal conduit for optic fibers & control panel wirings Stainless Steel Flexible Conduit System is particularly suitable for corrosive environments wirings, and the flexible design means it is ideal for constantly vibrating or flexing applications. The Delikon small bore Stainless Steel Conduit System further enhances the metallic flexible conduit ranges with the benefits of stainless steel. They are most suitable for protecting fibre optics cables.

SMALL BORE HOSE, Flexible stainless steel conduit for CCTV/roller shutter
Delikon manufactures unique tubing that is relied on in numerous industries. The tubing is produced by helical coiling of a cold-rolled metal strip onto a spindle, with the helical coils being linked with each other by means of a special type of strip profile. Basic materials for the strip are stainless steel or galvanized steel strip. However, other metals are also available. flexible stainless steel conduit

Applications: Offshore and Chemical Plants & Optical Fiber and sensors wirings

Protecting inspection equipment's wirings

Instrumentation tubing is used by manufacturers of various industries, such as Process & Control Instrumentation, Measuring & Controlling Devices, Analytical Instruments, Medical Instruments and many others with specific applications including temperature measuring, wiring conduit or armor cable and protective casing.

Photo on shown on the left:
Small ID flexible metallic conduit used for Flexible Fiber Optic Scope wirings.

Constructions:
Instrumentation tubing is made in two configurations, or constructions, commonly called SquareLok and InterLok, and is often abbreviated as SL and FI.

Technical Data / specifications:

SquareLok Style (SL)
SquareLok tubing is produced from a continuous metal strip, and is held in position by locking one leg of one profile over the leg of the adjacent profile.

Trade
Size

Inside Diameter

Outside Diameter

Weight

Breaking Load Min

Part Number

1/8”

3.5mm

0.140”

3.5mm

0.200”

5.1mm

0.017lb/ft

0.026kg/m

60lbs.
27kgs

AT-SL-002

5/32”

4mm

0.156”

4.0mm

0.235”

6.0mm

0.030 lb/ft
0.045 Kg/m

145 lbs.

66 Kg

AT-SL-0025

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.033lb/ft

0.049 Kg/m

150 lbs.

68 Kg

AT-SL-003

7/32”

5.5mm

0.218”

5.6mm

0.303”

7.7mm

0.040 lb/ft

0.059 Kg/m

155 lbs.

70 Kg

AT-SL-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.041 lb/ft

0.061 Kg/m

190 lbs.

86 Kg

AT-SL-004

9/32”

7mm

0.282”

7.2mm

0.375”

9.5mm

0.048 lb/ft

0.072 Kg/m

200 lbs.

91 Kg

AT-SL-0045

5/16”

8mm

0.313”

8.0mm

0.429”

10.9mm

0.055 lb/ft

0.082 Kg/m

200 lbs.

91 Kg

AT-SL-005

3/8”

9.5mm

0.375”

9.5mm

0.500”

12.7mm

0.088 lb/ft

0.131 Kg/m

225 lbs.

102 Kg

AT-SL-006

1/2”

12.7mm

0.500”

12.7mm

0.625”

15.9mm

0.106 lb/ft

0.157 Kg/m

250 lbs.

113 Kg

AT-SL-008

PACKING is available for large quantity orders. Part No.: AT-SL-PACKED- (packing type)
Packing Type	Pressure Range	Vacuum Rating	Temperature
Cotton	Up to 15 PSI	Up to 15" Mercury	300 F
Stainless/Copper Wire	Up to 15 PSI	Up to 15" Mercury	1500 F
Elastomeric	Up to 20 PSI	Up to 20" Mercury	180 F

Fully InterLok Style (FI)

InterLok metal strip and the edges of the strip are completely interlocked with each other. This offers increased crush protection, and higher axial strength.

Trade
Size

Inside Diameter

Outside Diameter

Weight

Breaking Load Min

Part Number

5/32”

4mm

0.174”

4.4mm

0.252”

6.4mm

0.037 lb/ft
0.055 Kg/m

180 lbs.

78 Kg

AT-FI-0025

3/16”

5mm

0.188”

4.8mm

0.266”

6.8mm

0.041 lb/ft

0.060 Kg/m

190 lbs.

86 Kg

AT-FI-003

7/32”

5.5mm

0.218”

5.5mm

0.303”

7.7mm

0.045 lb/ft

0.067 Kg/m

200 lbs.

91 Kg

AT-FI-0035

1/4”

6mm

0.250”

6.4mm

0.329”

8.4mm

0.046 lb/ft

0.068 Kg/m

250 lbs.

113 Kg

AT-FI-004

9/32”

7mm

0.282”

7.2mm

0.375”

9.5mm

0.054 lb/ft

0.081 Kg/m

260 lbs.

118 Kg

AT-FI-0045

5/16”

8mm

0.313”

8.0mm

0.429”

10.9mm

0.062 lb/ft

0.092 Kg/m

260 lbs.

118 Kg

AT-FI-005

3/8”

9.5mm

0.375”

9.5mm

0.500”

12.7mm

0.099 lb/ft

0.147 Kg/m

292 lbs.

132 Kg

AT-FI-006

1/2”

12.7mm

0.500”

12.7mm

0.625”

15.9mm

0.119 lb/ft

0.176 Kg/m

325 lbs.

146 Kg

AT-FI-008

* Maximum size we could produce= 6"(about 150mm). For bigger sizes or custom sizes order, please send us your detailed requirement.

OD tolerance is +/- 0.015 inches ID tolerance is +/- 0.020 inches


Stainless Flexible Protection conduits with PVC Sheathing Or Metal Wire Braiding for use in hazardous Locations, industrial environments and Vehicle wiring harness.
For Large Quantity Order, it is possible to Vacuum-Jacket or Extrude a PVC covering onto the above AT-SL (SquareLok Type) conduits for water proof applications. Please also refer to: Flexible Metal Conduit Systems

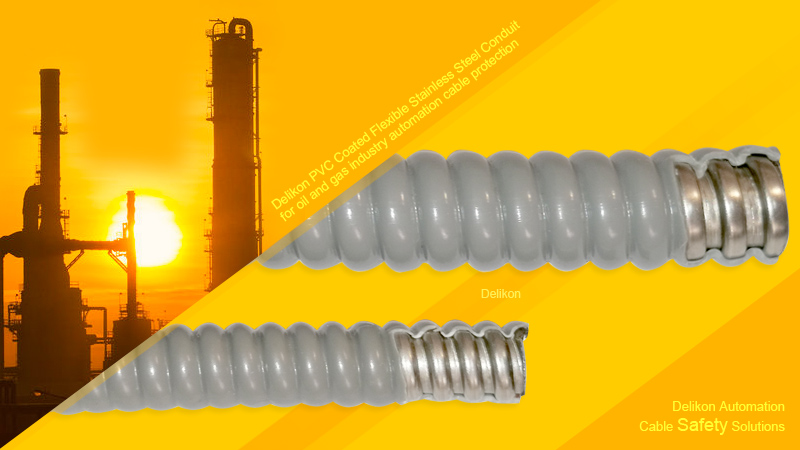

Delikon PVC Coated Flexible Stainless Steel Conduit for oil and gas industry automation cable protection The oil and gas industry is an aggressive environment for electrical cables. Thanks to its strength and corrosion resistance, Delikon PVC Coated Flexible Stainless Steel Conduit is the best choice for protecting oil and gas industry automation cables. Explosive substances, aggressive media and moisture makes numerous processes in the chemical industry extremely risky. Delikon PVC Coated Flexible Stainless Steel Conduit system not only helps you reduce down time due to cable failures and make processes more productive, but also supports you in your goal of ensuring that people and the environment remain safe. Delikon PVC Coated Flexible Stainless Steel Conduit also offers Cable Safety Solutions for the automotive industry. Delikon PVC Coated Flexible Stainless Steel Conduit is especially used in high performance premium vehicles wiring harness.

Delikon tailor made Waterproof Stainless Steel Flexible Conduit for vehicle and farm automation wiring harness The changes in vehicle electronics announced by the automotive industry will also result in massive changes in cabling: Introduction of a more centralized computer architecture with powerful domain computers; increased use of sensors with correspondingly higher data volumes within the vehicle and between the vehicle and the outside world, as well as the electrification of the drive train. All these factors significantly increase the amount of cabling in cars. Delikon Waterproof Stainless Steel Flexible Conduit system protects cable wiring harness of EV, HEV, NEV and Agriculture and Farming Equipment in corrosive and damp environments.


TYPE: AT-SL-JACKETED The PVC covering is applied onto the metal surface with a Vacuum process. The finished surface will have a spiral corrugated pattern. It is most suitable for tight-spot installation and where a certain water tightness is required flexible stainless steel conduit		TYPE: AT-SL-EXTRUDED The PVC covering is extruded onto the metal surface, thus producing a *thicker coating* finished surface. when used with liquid-tight fittings it offers a higher degree of liquid tightness than the vacuum jacketed type.
		Over Braided Stainless Steel Flexible Conduit
TYPE: AT-SL-SLEEVED A short length of the AT-SL tubing is directly inserted into a thermoplastic sleeve. A very smooth outer surface and a very uniform thickness of sleeving is ensured. For cut to length OEM orders.		TYPE: AT-SL-BRAIDED EMI/RFI Shielding Flexible Conduits High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible metal tubing for optimum protection. Over Braided Flexible Stainless Steel Conduit provides increased abrasion & corrosion resistant, improved EMI screening, and resists hot metal splashes.
Delikon Flexible Conduit System For Complete CCTV Cable Protection Solutions DELIKON's whole range of flexible conduit systems provides dedicated protection to vulnerable CCTV systems, not only from the elements, but also from the threat of vandalism. The wide range of DELIKON metallic and non-metallic flexible conduit systems is specifically designed to provide ingress protection to the vulnerable umbilical cabling used on CCTV cameras and networks. The flexible systems are ideal for both static and rotating cameras. For Industry Automation

Delikon Corrosion Resistant Stainless Steel Flexible Conduit for INDUSTRIAL COMMUNICATION CABLE PROTECTION The reliable wiring solutions for factory, machine, and plant automation. Industrial communication essentially it is your key to future competitiveness. The future of manufacturing is 5G, Wifi, Industrial Ethernet, and IIoT. With our industrial suited, robust high quality corrosion resistant Stainless Steel Flexible Conduit for the cable protection of intelligent control of PLC, sensors and actuators, we support you in transforming your factory into a Smart Factory. Delikon provides industrial communication cable shielding flexible conduit. From the sensor, actuator and control level to the CNC machining center, we work together with you to realize entire network cabling flexible sheath solutions for the reliable transmission of the highest data volumes. We provide the highest quality flexible stainless steel conduit system to maintain machine up time and avoid costly downtime. Therefore, our connection stainless steel flexible conduit solutions are ideally suited for demanding conditions and offer maximum reliability under chemical, mechanical, and thermal stress.

Delikon EV and farming equipment wiring harness Waterproof Corrosion Resistant PVC Covered Stainless Steel Conduit Made from stainless steel for maximum corrosion resistance and durability, Delikon PVC coated flexible stainless steel conduit is ideal for Agriculture farming equipment and EV wiring harness. Delikon Jacketed Flexible Stainless Steel Conduit and Stainless Steel Connector are used for Wiring Harness of Electric and Hybrid Electric Vehicles, agriculture equipment, automation and autonomy wiring harness for agriculture. Delikon Flexible Conduit and Fittings for Automotive Wiring Harness and Heavy Duty Vehicle Wiring Loom

Delikon Flexible Conduit and Fittings For Offshore, Petrochemical and Heavy Industry Electrical Wirings. Delikon supplies a comprehensive range of marine offshore stainless steel flexible conduit and stainless steel connector for shipboard wiring, offshore platforms, and other at sea installations for oil drilling and production. And Delikon High Temperature Heavy Series Over Braided Flexible Conduit systems are used extensively in REFINERIES and PETROCHEMICAL plants around the globe

Delikon Kiln, oven, boiler, furnace automation cable protection High Temperature Interference Shielding Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector Delikon is the leading supplier of High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector for protection of electrics and automation cables for the metal industry. Steel plants, especially rolling mills as well as processing lines, depend mainly on uninterruptible processes and on the quality of the steel rolled. As a result, cable protection technology plays an essential role. Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector constructed entirely of metals, are ideally suited for foundries, glass manufacturing, steel mills and other high temperature processes, providing a cable flexible conduit system for longer life and reduced down time . Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector offer mechanical impact and crushing protection as well as protection against hot sparks and slag In addition to the benefit of protection against damage to cable components from cable motion and use, proper shielding provided by Delikon High Temperature Heavy Series Over Braided Flexible Metal Conduit and High Temperature Heavy Series Connector is essential to many applications as it can keep out unwanted external interference.

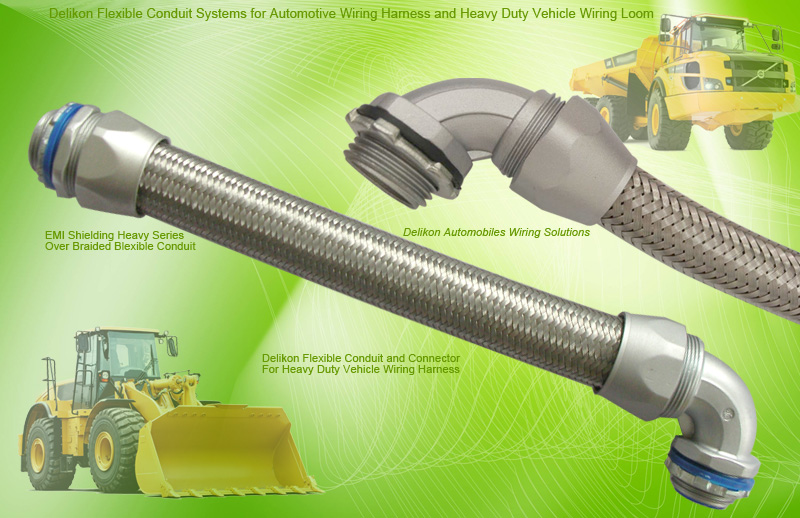

Delikon Flexible Conduit Systems for Automotive Wiring Harness and Heavy Duty Vehicle Wiring Loom Delikon manufactures the industry best OEM and universal flexible cable conduit wiring systems for Automobiles. Wiring Harness handles the complete current flow across all the components of a vehicle including its lights, wipers, electrical devices and other electronic components. Increase in demand for high end electronic and safety features in vehicles, along with cost reduction and enhanced reliability, is leading to rise in demand for automotive wiring harnesses globally. The Delikon wiring harness flexible conduit system facilitates safe, reliable, compact and simple functioning of the electronic devices installed in the automobile. Delikon offers a wide variety of flexible conduit and fittings to help you with your Automotive Wiring Harness project, like coated flexible metal conduit, liquid tight conduit, flexible stainless steel conduit, EMI Shielding heavy series over braided flexible conduit, liquid tight connector, and heavy series conduit fittings.


Delikon EMI RFI Shield Termination Heavy Series Connector, Anti Vibration Swivel Heavy Series Connector, and High Temperature Connector protect automotive industry, Petrochemical industry and metal industry automation cable and Control Cables. Available with G (ISO 228-1, PF), Metric M, NPT, and PG male and female threads.
Overbraided flexible metal conduit systems are ideal for use in high temperature industry applications with sparks, weld slag or hot swarf. Over braided flexible metal conduit are also suitable for screening electromagnetic radiation.
Electric Flexible Conduit Systems for petrochemical and hi-spec applications Delikon manufactures a range of petrochemical, high-specification electrical flexible conduit systems covering many specialist applications, for industries as diverse as healthcare, offshore, mining and food and drink. Flexible Conduits made by Delikon is specified for plant rooms, machinery and machine tools, security systems, marine and offshore installations, railways, oil and gas installations, hospitals and more.
Electromagnetic shielding over Braided Flexible Conduit for industry control cable

Manufacturer of quality electrical flexible conduit and fittings systems. sales@semiconduits.com Fax: 86-21-64867229

Delikon Heavy Series Over Braided Flexible Conduit and Heavy Sheath Flexible Conduit Fittings protect CNC EDM Machine Data and Power Cable and Fluid Line. Delikon Over Braided Flexible Conduit and Fittings provide reliable protection to cables. Delikon Heavy Series Over Braided Flexible Conduit with MS Adapter for Servo Motor Cable protectio

Metal Liquid Tight Conduit and Conduit Fittings

Heavy Series

Interlocked Over Braided Liquid Tight Conduit and Fittings

Delikon Heavy Series Over Braided Flexible Conduit and Fittings are specially designed for protecting electric and automation cables from the harsh environments found in steel mills, coke plants and glass manufacturing. Our heavy series over braided flexible conduit systems are superior in their ability to withstand heat, moisture and molten material splash and are highly resistant to mechanical and physical abuse. The overall stainless steel braid provides slag protection. Heavy Series Flexible Sheath and Conduit fittings
Delikon Interference Shielding Over Braided Flexible Conduit and Heavy Series Connector for VFD cable and PLC cable protection

Delikon Electrical Flexible Conduit and Fittings are part of an equipment or an electrical installation that is made to last.
