Over Braided Flexible Metal Conduit For High Temperature Wiring       FLEXIBLE EMC SCREENING  Offshore Applications

Inherently low fire hazard (ILFH),  Braided Flexible Metal Conduit is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. This braided conduit also offers excellent protection to cables against hot metal particles, and immunity from electromagnetic interference. Most suitable for use in Hazardous Locations, industrial environments and high temperatures.

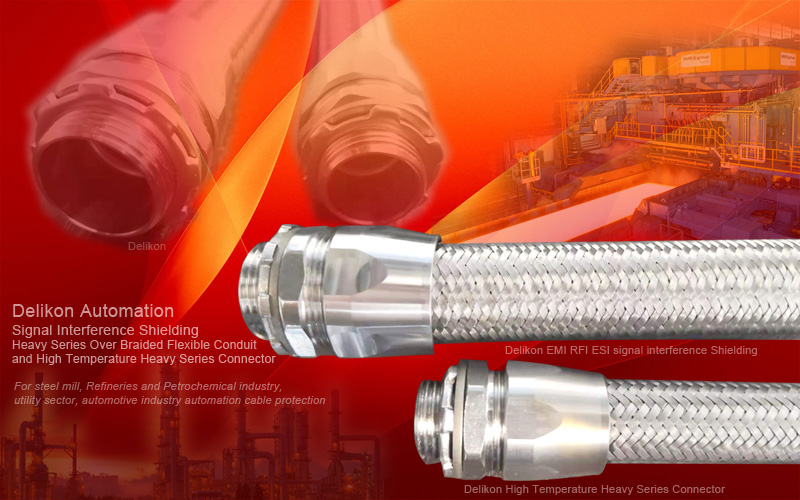

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automotive and steel industry automation Ethernet cable, UTP unshielded twisted-pair cable, PLC cable, power and data cable

Industrial applications such as the automotive or steel factory floor are typically electrically noisy environments. Switching heavy loads, inductive heaters, large transformers, generators, and robotics can all present high levels of both conducted and radiated EMI. There are thousands of applications where the EMI RFI in the location is so high it causes problems with the Ethernet link. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector effectively isolate wires from the environment through which the cable runs, combating the effects of EMI. The heavy series metal connector clamp the over braiding tightly forming electrical contact around the entire periphery of the shield, providing a
360 degrees SHIELD termination. The complete Delikon heavy series braided flexible conduit and connector assembly provides a low impedance path to ground and delivers a relatively thick and exceptionally conductive boundary around the cables that reflects and absorbs disruptive signals.
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automotive and steel industry automation Ethernet cable, UTP unshielded twisted-pair cable, PLC cable and power and data cable
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector solutions for the
automotive industry cable protection


With Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector automation cable protection solutions for automotive manufacturing processes, you will achieve higher and more consistent productivity, without compromising on flexibility. From the outset, Delikon has partnered with the automotive industry to develop innovative and high performance cable protection flexible conduit system solutions for automotive production processes. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector help automotive industry reduce down time due to power or data cable failure and achieve performance, availability and profitability for all manufacturing processes. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect automation cables in Body shop, Paint shop, and Final assembly.

Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector protect spot welders and stud welding machines cables, industry automation cables and motion control cables from welding sparks and spattered hot metal pieces. Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series Connector provides mechanical protection as well as EMI shielding to communications cables linking all computers and controls in Assembly and Paint shop. Delikon Over Braided Flexible Polyamide Corrugated Conduit and Heavy Series Metal Conduit Fittings are widely used to protect industrial robots cables.
Delikon Heavy Series Over Braided Flexible Conduit,Fittings protect Industry 4.0 power, signal and data cables
Delikon EMI Shielding Heavy Series Over Braided Flexible Metal Conduit Heavy Series Over Braided Flexible Metal Conduit For High Temperature Wiring.

Inherently low fire hazard (ILFH), Heavy Series Over Braided Flexible Metal Conduit is widely used to counter mechanical stress and is highly flexible, and it is resistant against tensile stresses and transverse pressure. This braided conduit also offers excellent protection to cables against hot metal particles, and immunity from electromagnetic interference EMI. Heavy Series Over Braided Flexible Metal Conduit is most suitable for use in Industry automation applications, industrial environments and high temperatures.
Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil

Min.

Max.

Min.

Max.

SM-7000101 - 7.5 8.3 10.8 11.6 35  100
SM-7000102 1/4" 9.7 10.2 14.5 15.0 40  100
SM-7000103 3/8" 12.3 12.8 16.6 16.8 50 50
SM-7000104 1/2" 15.8 16.2 20.5 20.9 65 50
SM-7000106 3/4" 20.8 21.3 25.7 26.2 75 50
SM-7000110 1" 26.4 27.1 32.6 33.1 100 50
SM-7000112 1-1/4" 35.0 35.5 41.0 41.5 125 30
SM-7000114 1-1/2" 40.1 40.6 46.8 47.3 150 30
SM-7000120 2" 50.5 51.2 58.3 59.0 175 20
SM-7000124 2-1/2" 62.9 63.9 73.1 74.1 200  10
SM-7000130 3" 77.0 78.0 88.0 89.0 225  10
SM-7000140 4" 99.6 101.6 109.7 111.5 275  10
SM-7000150 5" 125.0 127.0 137.0 139.0 350 5
SM-7000160 6" 150.0 153.0 162.0 164.5 480 5
Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor Cable
Heavy Series Over Braided Flexible Conduit with MS Plug Adapter for Servo Motor Cable and CNC machine

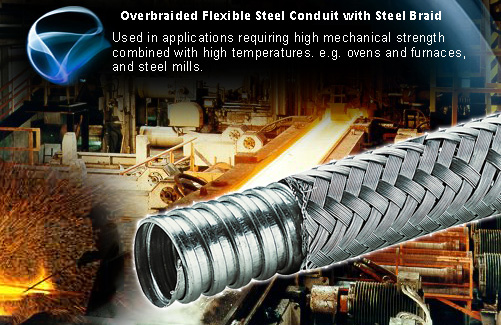

Over braided flexible steel conduit, abrasion resistant is used in applications requiring high mechanical strength combined with high temperatures. e.g. ovens and furnaces, petrochemical and steel mills. OVER BRAIDED FLEXIBLE CONDUIT flexible sheath fittings for bank vault cable protection





Over braided flexible conduits provide high mechanical strength yet offer high flexibility. The flexible metallic conduit, at full extension, offers high tensile strength without elongation thus protecting cables from being over-tensioned or stretched. Braided flexible conduits also provide a high level of
EMI screening for data cables. Braided metal conduit is excellent in protecting cables against metal particles and against vandalism or rodents.

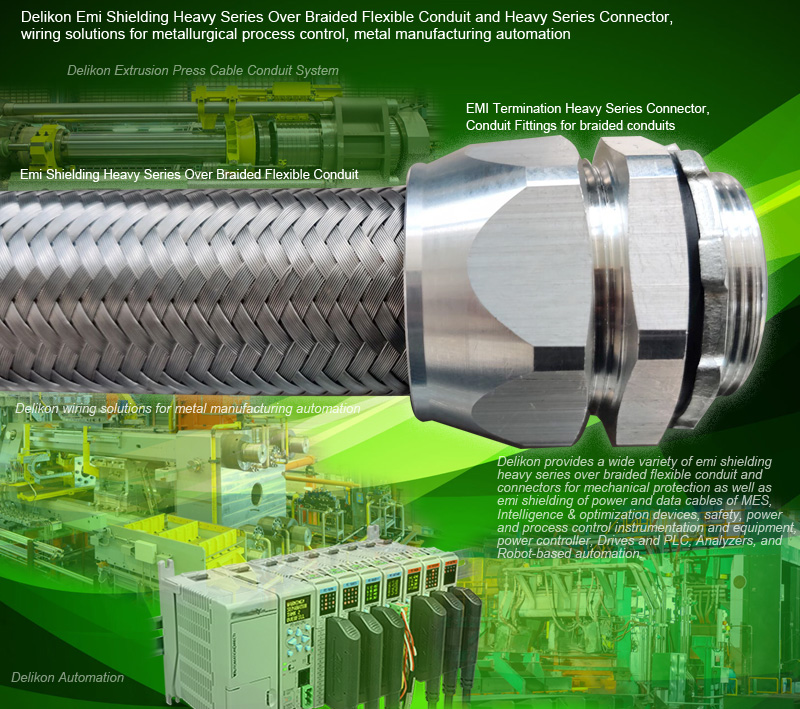

Delikon industry control heavy series over braided flexible conduit and connector for automation and process control wiring applications
Flexible conduit system for industry control and robot.
Nylon conduit system protects sensitive cablingHeavy Series Over Braided Flexible Conduit and Heavy Series Flexible Metal Fittings For industry automation cable protection







Hea
vy Series Over Braided Flexible Conduit and Heavy Series Flexible Metal Fittings For industry automation cable protection


       Delikon Heavy Series Over Braided Flexible Conduit and Fittings offer a number of benefits that make them the ideal choice for the harsh, demanding applications in chemical industry
Heavy series metal connector clamp the over braiding tightly providing a 360 degrees SHIELD termination.

Over braided Flexible Steel Conduit For High Temperature WiringDelikon Military Circular Connector Backshell

Delikon Military Circular Connector Backshell

Conduit Adapter

Conduit
Adapter

All 3 models of braided flexible steel conduits
Download the catalog page for DELIKON SM-70001 Over Braided Flexible Metal ConduitDownload the catalog page for DELIKON SM-70001 Over Braided Flexible Metal Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.



Over Braided Flexible Metal Conduit protecting cables and wires from damage by welding sparkles or hot chips
Overbraided Flexible Steel Conduit For High Temperature Wiring

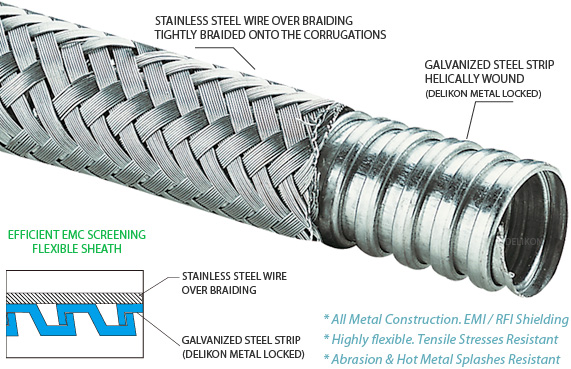

GALVANISED STEEL CONDUIT WITH STEEL OVERBRAIDING GALVANISED STEEL CONDUIT WITH STEEL OVERBRAIDING, This conduit utilises strip wound steel conduit as a core, which is then over-braided with steel. The wire over braid provides abrasion resistance and protects the core from mechanical damage. Braided steel conduits provide high mechanical strength yet offer high flexibility. The conduit, at full extension, offers high tensile strength without elongation thus protecting cables from being over-tensioned or stretched. It will provide an enhanced level of EMI   screening and a wide operating temperature. This conduit Resists hot swarfs.
Over Braided Flexible Steel Conduits for heavy industry Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT
Suitable connectors
Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw)
Y Y Y Y Y Y Y Y Y Y Y Y
YABS, with metal clamping ring for high temperature
YABS
Connectors of all metal construction

Conduit Connectors of all metal construction, most suitable for high temperature wirings. For braided flexible metal conduit and flexible steel conduit.

For Industry Automation

Y
Heavy series flexible cable sheath water proof over braided flexible steel conduit offers optimum cable protection. Heavy series flexible cable sheath
water proof over braided flexible steel conduit
offers optimum cable protection in industry applications for protection against HOT metal sparks, slag, etc..
Over BRAIDED FLEXIBLE LIQUID TIGHT CONDUIT for cable management and protection of critical wiring in Mining, Oil and Gas, Ship Building, steel mill, Beverage and Machine Tools Industry




| Home | Products | What's New | Our Company | Support | Contact SEMI | Catalogs | Steel Mill Wiring Flexible Conduit


  SEMI CONDUITS    PVC Coated Flexible Metal Conduit    Liquid Tight Conduit    Over Braided Flexible Conduit  ●  Conduit Fittings

 Manufacturer of quality electrical flexible conduit and fittings systems.                         sales@semiconduits.com   Fax: 86-21-64867229


Delikon Heavy Series Over Braided Flexible Conduit and Heavy Sheath Flexible Conduit Fittings for machine wiringDelikon Heavy Series Over Braided Flexible Conduit and Heavy Sheath Flexible Conduit Fittings protect CNC EDM Machine Data and Power Cable and Fluid Line. Delikon Over Braided Flexible Conduit and Fittings provide reliable protection to cables. Delikon Heavy Series Over Braided Flexible Conduit with MS Adapter for Servo Motor Cable protectio

Metal Liquid Tight Conduit and Conduit Fittings

Heavy Series

Interlocked Over Braided Liquid Tight Conduit and Fittings


Delikon Heavy Series Over Braided Flexible Conduit and Fittings are specially designed for protecting electric and automation cables from the harsh environments found in steel mills, coke plants and glass manufacturing. Our heavy series over braided flexible conduit systems are superior in their ability to withstand heat, moisture and molten material splash and are highly resistant to mechanical and physical abuse. The overall stainless steel braid provides slag protection. Heavy Series Flexible Sheath and Conduit fittings

Heavy Series Over Braided Flexible Conduit and Fittings are specially designed for protecting electric and automation cables from the harsh environments found in steel mills, coke plants and glass manufacturing.

Delikon Liquid Tight Conduit and Liquid Tight Conduit Connector for Railroad Signal Instrument Houses
