  Over Braided Flexible Metal Conduit, water proof, EMC Screening ( YF-704 ) Heavy Series Over Braided Flexible Conduit for Robotics Spot Welding Line Cable Protection

typically used for steel mills machineries, robotics and petrochemical industrial cable protection
*Galvanized steel helically wound, square locked type construction braided metallic conduit
 with PVC coating and wire over-braid. Metal braiding provides increased abrasion resistance.
*1/4"~6" trade size  *Water-tight *EMI/RFI shielding *Resists hot metal splashes

Over Braided PVC Coated Flexible Metal Conduit For Industry Control Wiring
  • MADE FROM TYPE YF-707 (square-locked) CONDUIT WITH WIRE OVER-BRAID:
    *Wire over-braiding provides more abrasion resistance and efficient EMI/RFI shielding.
    *
    Explosion proof.
    *Durable and long life.
    *Inner core made from  galvanized steel strip.
    *Square locked construction for more dynamic flexibility.
    *Resists hot metal  splashes and high temperature
    *PVC covering provides water & moisture protections for the electrical conductors

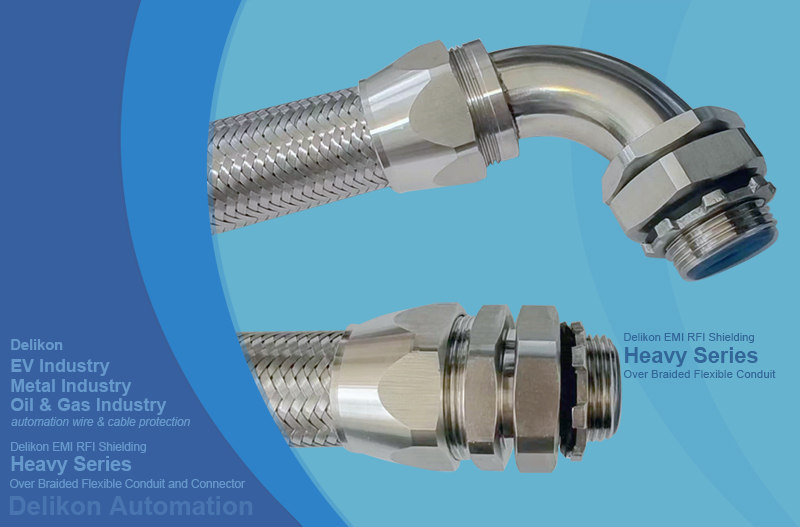

    Braided flexible conduit assembly

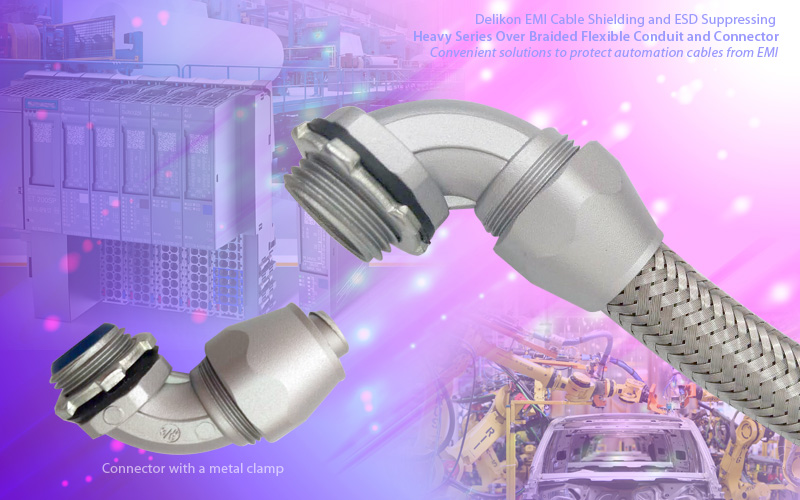

    Over-braided flexible conduit system with connectors


    Applications:

    Suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening and water tightness are required. Most suitable for petrochemical and steel mills electric wirings management.
Clean data transmission in a noisy environment is an ever increasing requirement on today's crowded factory floors. Braided flexible steel conduit systems provide excellent EMI and RFI shielding, as well as mechanical protection, resulting in improved data transmission for factory automations.
Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
YF-70401 8mm 8.0 8.4 13.0 13.4 50 100
YF-70402 1/4" 9.7

10.2

15.4 15.7 60 100
YF-70403 3/8" 12.3

12.8

18.5 19.0 70 50
YF-70404 1/2" 15.7 16.3 21.8 22.3 90 50
YF-70406 3/4" 20.7 21.2 27.2 27.7 110 50
YF-70410 1" 26.2 26.8 33.7 34.4 150 50
YF-70412 1-1/4" 34.7 35.4 42.5 43.2 175 30
YF-70414 1-1/2" 40.0 40.6 48.4 49.3 200 25
YF-70420 2" 51.3 51.9 60.4 61.3 230 20
YF-70424 2-1/2" 62.9 63.6 73.1 74.0 250 10
YF-70430 3" 77.9 78.7 88.8 89.9 300 10
YF-70440 4" 101.6 102.6 114.2 115.3 500 10
YF-70450 5" 125.0 127.0 141.0 144.0 580 5
YF-70460 6" 150.0 153.0 166.0 169.0 650 5

Typical Applications For Over Braided Flexible Metallic Conduits: Industry Control Wiring

Heavy industry wiringsBraided Flexible Metallic Conduits

Over braided flexible steel conduit,water proof
 For Heavy
 Industry
 Wirings

1) Electromagnetic Interference (EMI) considerations, EMC screening:
         *computers rooms *telecommunications *control systems *PLC circuit
2) Abrasion resistance considerations:
         *railway rolling stock *heavy duty industrial applications
3) Hot metal splashes resistance considerations:
         *steel mills *petrochemical plants
, Heavy Industrial wirings
4) Mechanical integrity:
         *security/CCTV *anti-vandal applications *robotics *Ships & Trains

*EMI/RFI shielding  *Water-tight  *Resists hot metal splashes  *Abrasion Resistant

*All sizes and dimensions listed above are subject to manufacturing tolerances. braided metallic conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
 flexible conduit               Also Refer To:
Braided Corrugated Nylon Conduit
Over Braided Flexible Conduit (Heavy series) for protection of industrial electrical cablesOver Braided Flexible Conduit (Heavy series) for protection of industrial electrical cables against water, oil, grease, solvents, and the outer braiding provides protection against hot metal sparks and slag. Industry Automation
Over Braided Flexible Steel Conduits for heavy industryFor Industry Automation Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT
Suitable connectors
Heavy series flexible conduit fittings,heavy series conduit connector Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw)
