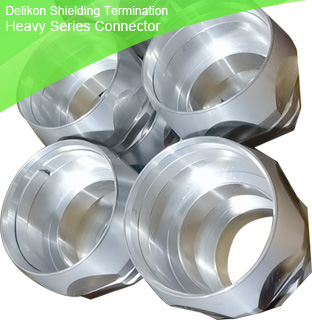

Delikon

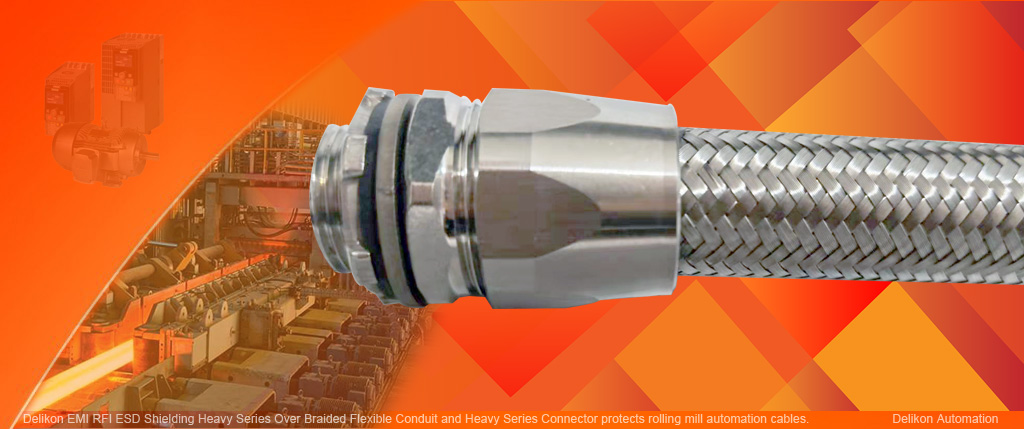

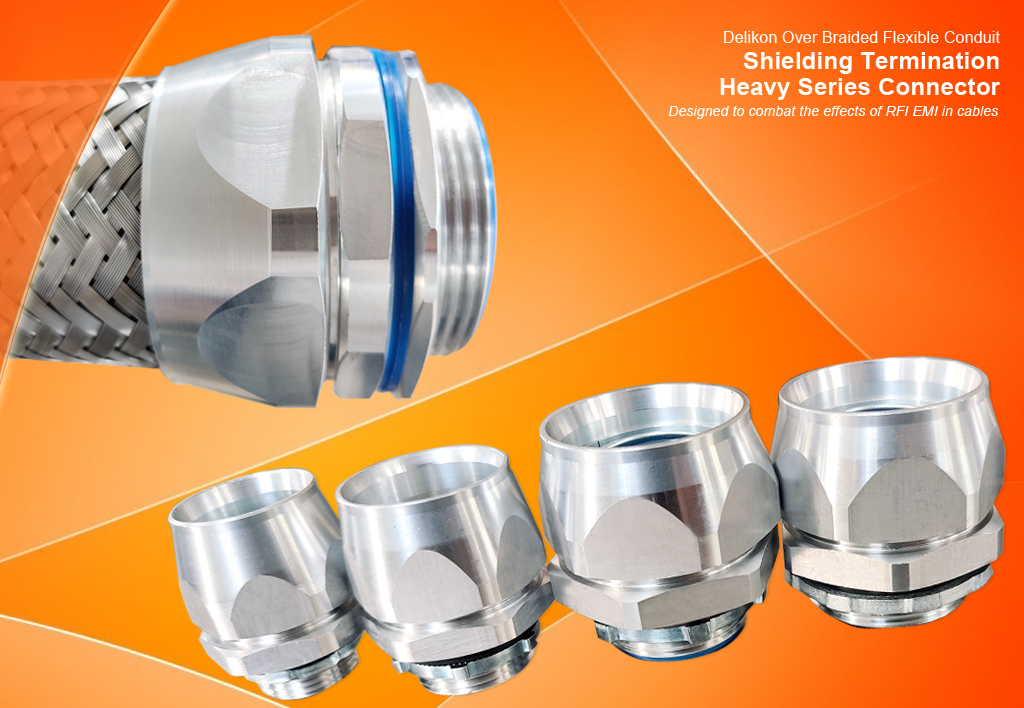

Shielding Termination
Heavy Series Connector and Over Braided
Flexible Conduit are designed to combat the
effects of RFI EMI in cables
Industrial applications such as the factory
floor are typically electrically noisy
environments. Electrical noise, either
radiated or conducted as electromagnetic
interference EMI, can seriously disrupt the
proper operation of other equipment. Cables
can be a main source of transfer for EMI,
both as a source and receiver. As a source,
the cable can either conduct noise to other
equipment or act as an antenna radiating
noise. As a receiver, the cable can pick up
EMI radiated from other sources.
Switching heavy loads, inductive heaters,
large transformers can all present high
levels of both conducted and radiated EMI.
Placing signal cables next to power cables
can also allow power line noise to couple
onto the signal lines.
Delikon Over Braided Flexible Conduit and
Heavy Series Connector are designed to
combat the effects of RFI EMI in cables. The
over braiding of the conduit provides a low
resistance path to ground and conducts to
ground any of the noise it has picked up.
Delikon Heavy Series Connector provides a
shielding termination
that provides a low impedance path to
ground, ensuring high shielding
effectiveness of the system. Delikon Heavy
Series Connector makes sure the shields are
bonded and grounded to equipment enclosure

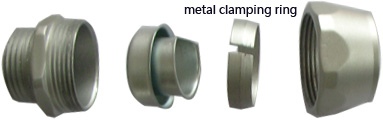

or electric cabinet. A 360-degree metal
split clamp slip around the outer stainless
braiding and the clamp is directly in
contact with the shield when the connector
back shell with a
cone shape interior
is tightened.
The heavy series connector clamps tightly
around the braiding and grounds the
shielding, which helps to protect the cables
against EMI noise.
Delikon Over Braided Flexible Conduit and
Heavy Series Connector also protects a cable
mechanically from scraps and abrasion and
environmentally from dust, moisture and
spills. |
 |
|
 |
|
|

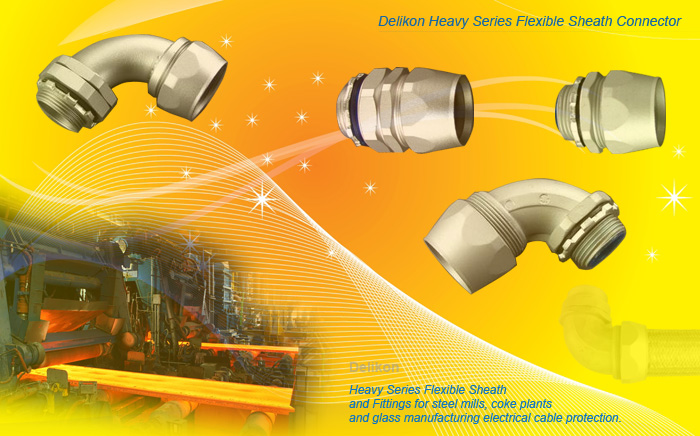

Flexible
Conduit Connector for Heavy Series Over Braided Flexible
Conduit Sheath
(
Straight Connector:
YABS.
90 Degrees
Connectors:
YALS.
45 Degrees Connectors:
YAHS) |
 |
|
All metal construction, heavy
seriesConduit Fittings are most
suitable for
high
temperature wirings.
Or with plastic sealing components for
liquid tight
applications.
For braided flexible metal conduit and flexible steel
conduit. Trade size: 1/4" -
4"
Available with ISO228-1,
Metric, NPT or PG threads
|
 |
|
 |
|
 |
 |
| |
|
|
For use with braided
flexible conduit systems: Positive clamping of both the inner
conduit and braiding |
 |
|

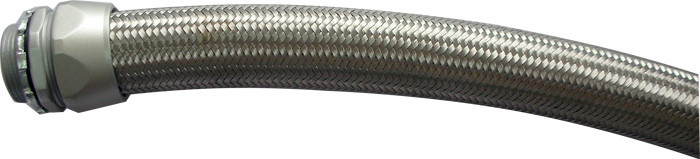

Straight Heavy
Series Flexible Conduit Fittings |
|
 |
|
|
|
Straight Connector
(fixed type) |
Model |
Size |
0 degree
Heavy Series
Fixed |
Model |
Size |
|
 |
YABS-03B |
3/8" |
YABS-14B |
1-1/2" |
|
YABS-04B |
1/2" |
YABS-20B |
2" |
|
YABS-06B |
3/4" |
YABS-24B |
2-1/2" |
|
YABS-10B |
1" |
YABS-30B |
3" |
|
YABS-12B |
1-1/4" |
YABS-40B |
4" |
|
|
|
|
Straight Connector (swivel type) |
Model |
Size |
0 degree
Heavy Series
Swivel |
Model |
Size |
|
 |
YABSR-03B |
3/8" |
YABSR-14B |
1-1/2" |
|
YABSR-04B |
1/2" |
YABSR-20B |
2" |
|
YABSR-06B |
3/4" |
YABSR-24B |
2-1/2" |
|
YABSR-10B |
1" |
YABSR-30B |
3" |
|
YABSR-12B |
1-1/4" |
YABSR-40B |
4" |
|
|
The external thread swivels about
the main body. It can be used with threaded entries or knockout secured
with a locknut. Most suitable for installations requiring
motion,
vibration and
bending. |
|
|
|
|
 |
|

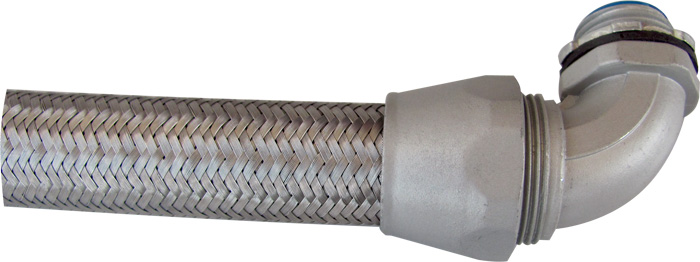

90 Degrees
Heavy Series Conduit Fittings |
|
|
|
|
|
90 Degrees Connector
(fixed type) |
Model |
Size |
90 degrees
Heavy Series
Fixed |
Model |
Size |
|
 |
YALS-03B |
3/8" |
YALS-14B |
1-1/2" |
|
YALS-04B |
1/2" |
YALS-20B |
2" |
|
YALS-06B |
3/4" |
YALS-24B |
2-1/2" |
|
YALS-10B |
1" |
YALS-30B |
3" |
|
YALS-12B |
1-1/4" |
YALS-40B |
4" |
|
|
|
90 Degrees Connector
(swivel type) |
Model |
Size |
90 degrees
Heavy Series
Swivel |
Model |
Size |
|
 |
YALSR-03B |
3/8" |
YALSR-14B |
1-1/2" |
|
YALSR-04B |
1/2" |
YALSR-20B |
2" |
|
YALSR-06B |
3/4" |
YALSR-24B |
2-1/2" |
|
YALSR-10B |
1" |
YALSR-30B |
3" |
|
YALSR-12B |
1-1/4" |
YALSR-40B |
4" |
|
|
The external thread swivels about
the main body. It can be used with threaded entries or knockout secured
with a locknut. Most suitable for installations requiring
motion,
vibration and
bending. |
|
|
|
|
|
|
|
45 Degrees
Heavy Series Conduit Fittings |
|
|
|
|
|
45
Degrees Connector
(fixed type) |
Model |
Size |
45 degrees
Heavy Series
Fixed |
Model |
Size |
|
 |
YAHS-03B |
3/8" |
YAHS-14B |
1-1/2" |
|
YAHS-04B |
1/2" |
YAHS-20B |
2" |
|
YAHS-06B |
3/4" |
YAHS-24B |
2-1/2" |
|
YAHS-10B |
1" |
YAHS-30B |
3" |
|
YAHS-12B |
1-1/4" |
YAHS-40B |
4" |
|
|
|
|
|
|
 |

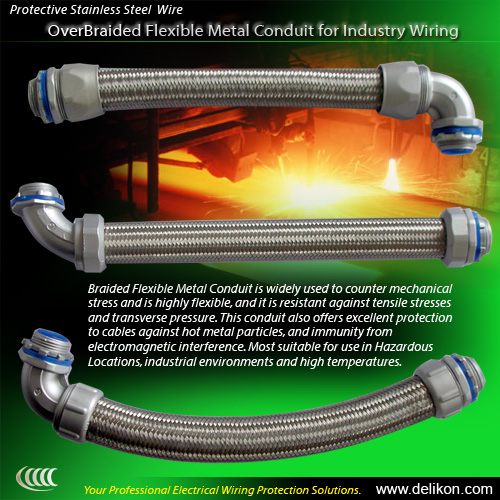

Protective Stainless Steel OverBraided
Flexible Metal Conduit for Industry Wiring
Braided Flexible Metal Conduit is widely used to counter mechanical
stress and is highly flexible, and it is resistant against tensile
stresses and transverse pressure.
This conduit also offers excellent protection to cables against hot
metal particles, and immunity from electromagnetic interference. Most
suitable for use in Hazardous Locations, industrial environments and
high temperatures.
Over braided flexible conduit is particularly used in (mechanical)
critical situations, such as machine-building, steel works but also in
transport systems and security.

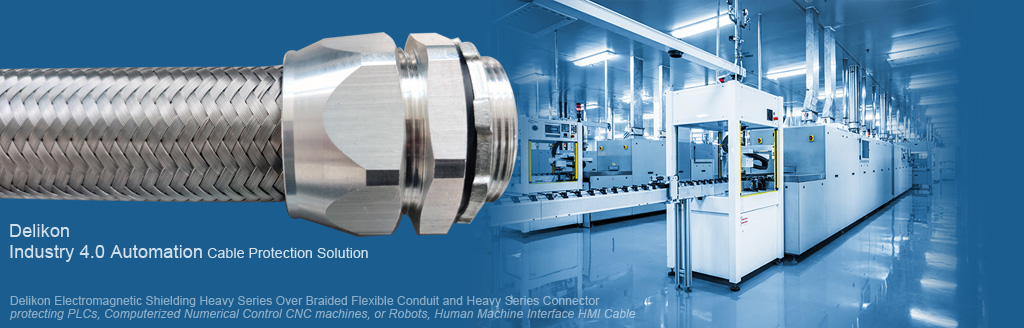

For
Industry Automation |
|
Delikon Metals
Industry Automation Wiring High Temperature Heavy Series Over
Braided Flexible Metal Conduit and High Temperature Heavy Series
Connector
 Delikon is
the leading supplier of High Temperature Heavy Series Over Braided
Flexible Metal Conduit and High Temperature Heavy Series Connector
for protection of electrics and automation cables for the metals
industry. Steel plants, especially rolling mills as well as
processing lines, depend mainly on uninterruptible processes and on
the quality of the steel rolled. As a result, cable protection
technology plays an essential role. Delikon High Temperature Heavy
Series Over Braided Flexible Metal Conduit and High Temperature
Heavy Series Connector constructed entirely of metals, are ideally
suited for foundries, glass manufacturing, steel mills and other
high temperature processes, providing a cable flexible conduit
system for longer life and reduced down time. Delikon High
Temperature Heavy Series Over Braided Flexible Metal Conduit and
High Temperature Heavy Series Connector offer mechanical impact and
crushing protection as well as protection against
hot sparks and
slag.
In addition to the benefit of protection against damage to cable
components from cable motion and use, proper shielding provided by
Delikon High Temperature Heavy Series Over Braided Flexible Metal
Conduit and High Temperature Heavy Series Connector is essential to
many applications as it can keep out unwanted external interference.
In many applications, electromagnetic interference EMI is a threat
to signal integrity. Shield quality is of particular importance in
small signal or high frequency applications where a slight variation
can have significant impact. All electrical cable will radiate
energy to, and pick up energy from, its surroundings. As such,
shielding of Delikon flexible conduit system can also be used to
contain the electromagnetic energy radiated by a cable, which in
turn can protect nearby sensitive components |
 |
