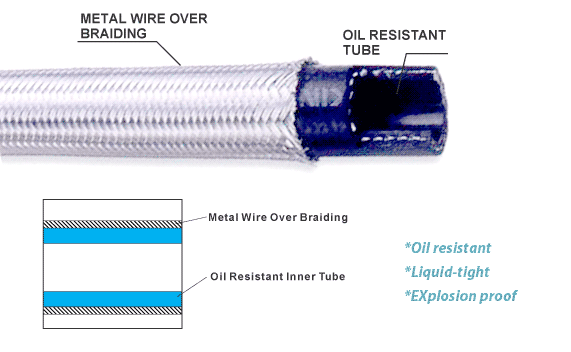

Wire Over-Braided Flexible Conduit ( SM-706 )

Wire Over-Braided Flexible Conduit ( SM-706 )
*Wire over-braiding *Liquid-tight *Oil resistant

Oil Resistant Flexible Conduit is especially suitable for wiring machine
tools, hydraulic presses and other types of industrial equipment,
which are subjected to moisture from coolant, oils and fluids.

OIL RESISTANT WITH WIRE OVER-BRAID:

*Wire over-braiding provides more abrasion resistant and EMI screening.
*Durable and long life.
*Inner core made from oil resistant materials.

Applications:

Best for industrial machineries.

Oil Resistant Flexible Conduit is especially suitable for wiring machine
tools, hydraulic presses and other types of industrial equipment,
which are subjected to moisture from coolant, oils and fluids.
Related Products:

Corrugated nylon flexible tube with wire over braid. >>> Model SM-705

Type	Trade Size	I.D. (mm)		O.D. (mm)		Meter/Coil
Type	Trade Size	Min.	Max.	Min.	Max.	Meter/Coil
SM-70606	6	5.7	6.3	13.5	13.8	100
SM-70608	8	7.7	8.3	15.5	15.8	100
SM-70610	10	9.7	10.3	17.5	17.8	100
SM-70613	13	12.7	13.3	22.5	22.8	50
SM-70616	16	15.7	16.5	25.5	26.8	50
SM-70619	19	18.7	19.5	29.5	29.8	30
SM-70625	25	24.7	25.5	36.5	36.8	20

*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
