Wire Over-Braided Flexible Conduit ( SM-705 )
*Corrugated Nylon core  *Wire over-braid
*1/4"~2" trade size *Liquid-tight *Explosion proof

EXplosion proof nylon corrugated tube

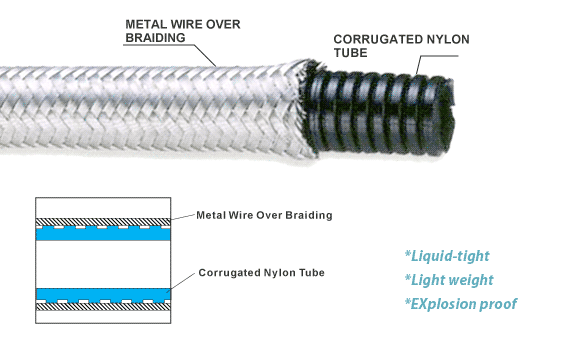

  • MADE FROM CORRUGATED NYLON CONDUIT WITH WIRE OVER-BRAID:

    *Wire over-braiding provide more abrasion resistant and EMI screening.
    *    Explosion proof.
    *Durable and long life.
    *Inner core made from  corrugated Nylon tube.
    *Corrugations for more flexibility.



  • Applications:

    Appliances, automotive wire & cable sleeving, industrial equipments,
    medical devices, machineries, wire conduits



  • Related Products:

    EXplosion proof liquid-tight flexible conduits. >>> Model SM-702


Type Trade Size I.D. (mm) O.D. (mm) Meter/Coil
Min. Max. Min. Max.
SM-70501 1/4" 6.4 6.6 10.7 11.0 100
SM-70502 5/16" 9.7 10.0 13.7 14.0 100
SM-70503 3/8" 11.7 12.0 16.5 16.8 100
SM-70504 1/2" 16.5 16.7 21.8 22.2 100
SM-70506 3/4" 21.5 22.0 29.0 29.5 100
SM-70510 1" 27.7 28.2 34.5 35.0 50
SM-70512 1-1/4" 35.5 36.0 42.2 42.8 50
SM-70520 2" 46.4 47 54.8 55.5 50
*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
