Wire Over-Braided Flexible Conduit ( SM-702 )

Wire Over-Braided Flexible Conduit ( SM-702 )
most suitable for demanding industrial wiring applications.

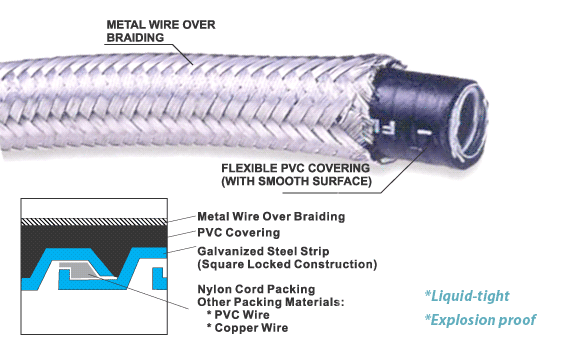

*Galvanized steel helically wound with PVC coating and wire over-braid.
*Trade size: 3/8"~2" (square locked, with Nylon cord packing.)
*Liquid-tight *Explosion proof (Suitable for use in Hazardous Location)

Flexible conduit with wire over-braiding

MADE FROM TYPE SM-602 CONDUIT WITH WIRE OVER-BRAID:

*Wire over-braiding provides more abrasion resistant, EMI screening and resistance to hot metal splashes.
*Explosion proof. Liquid-tight.
*Durable and long life.
*Inner core made from galvanized steel strip.
*Square locked construction with packing for more tensile strength.
*Other packing materials: copper bonding (grounding) wire, PVC wire packing is also available.

Applications:

Suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening are required.

Related Products:

Liquid tight flexible conduits without wire over-braid. >>> Model SM-602

Type	Trade Size	I.D. (mm)		O.D. (mm)		Min Bending Radius (mm)	Meter/Coil
Type	Trade Size	MIN.	MAX.	MIN.	MAX.	Min Bending Radius (mm)	Meter/Coil
SM-70203	3/8"	12.3	12.8	18.8	19.3	78	50
SM-70204	1/2"	15.8	16.2	22.8	23.1	95	50
SM-70206	3/4"	20.8	21.3	27.5	28.0	120	30
SM-70210	1"	26.4	27.1	34.8	35.3	180	30
SM-70212	1-1/4"	35.0	35.5	43.8	44.5	230	20
SM-70214	1-1/2"	40.1	40.6	49.5	50.0	270	20
SM-70220	2"	50.5	51.2	62.3	63.0	300	15

*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
