Corrugated Nylon Flexible Conduit Fittings ( Straight Nylon Connector )

* Most suitable for corrugated nylon flexible conduit

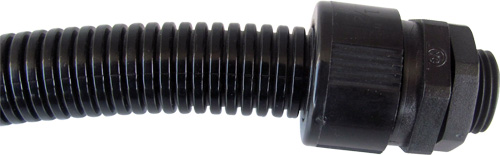

Straight connector for corrugated nylon flexible conduit
* All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. Suitable for industry applications.
* Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.

Corrugated Nylon Flexible Conduit Fittings ( Straight Nylon Connector )
Liquid Tight


Straight Nylon Connector (
PF threads)

Model No.

Trade Size

Dimension (mm)

PF (G)Threads

I.D.

A

B

C

D

PFB-03B

3/8

11.3

20.6

27

13 40

PF 1/2

PFB-04B

1/2

14.4 20.6 34.5 13 43.6

PF 1/2

PFB-06B

3/4 18.3 26 42.0 15 42.3

PF 3/4

PFB-10B 1 24.4 32 48.5 18 51.1 PF 1
PFB-12B 1-1/4 32.7 42 58.0 18 59 PF 1-1/4
PFB-20B 2 48.8 60 70.5 21 63.5 PF 2


Straight Nylon Connector (
PG threads)

Model No.

Trade Size

Dimension (mm)

PG
Thread
s

I.D.

A

B

C

D

PGB-02B

1/4

7.0 12.3 22 10 37.2

PG 7

PGB-02-5B

5/16 9.0 15.2 24.3 10 34.3 PG 9
PGB-03-1B 3/8

11.3

18.6 27 10 33.8 PG 11
PGB-03-2B 3/8

11.3

20.4 27 10 35 PG 13.5
PGB-04B 1/2 14.4 22.5 34.5 12 41.7 PG 16
PGB-06B 3/4 18.3 28.3 42 12 43 PG 21
PGB-10B 1 24.4 37.0 48.5 12 45.2 PG 29
PGB-12B 1-1/4 32.7 47.0 58 12 53.2 PG 36
PGB-20B 2 48.8 59.0 70.5 15 58 PG 48


Straight Nylon Connector (Metric threads)

Model No.

Trade Size

Dimension (mm)

Metric Threads

I.D.

A

B

C

D

PMB-025M12

5/16 9.0 12 24.3 12 35.9 M12 X 1.5

PMB-025M16

5/16 9.0 16 24.3 12 35.9 M16 X 1.5
PMB-03M16 3/8

11.3

16 27 12 37.1 M16 X 1.5
PMB-03M20 3/8

11.3

20 27 13 38.4 M20 X 1.5
PMB-04M20 1/2 14.4 20 34.5 13 42.9 M20 X 1.5
PMB-04M25 1/2 14.4 25 34.5 13 42.9 M25 X 1.5
PMB-06M25 3/4 18.3 25 42 13 44.1 M25 X 1.5
PMB-06M32 3/4 18.3 32 42 15 46.4 M32 X 1.5
PMB-10M32 1 24.4 32 48.5 15 47.5 M32 X 1.5
PMB-10M40 1 24.4 40 48.5 15 48 M40 X 1.5
PMB-12M40 1-1/4 32.7 40 58 15 53.2 M40 X 1.5
PMB-12M50 1-1/4 32.7 50 58 15 53.2 M50 X 1.5
PMB-20M50 2 48.8 50 70.5 15 58 M50 X 1.5
PMB-20M63 2 48.8 63 70.5 15 58 M63 X 1.5
Nylon conduit straight fittings (PF,PG,METRIC Threads) for use with Corrugated Nylon Conduit

This straight nylon connector is most suitable for use with Corrugated Nylon Conduit (model PB) for industry cable management.
