Flexible Metallic Conduit ( YF-502 )

Flexible Metallic Conduit ( YF-502 )

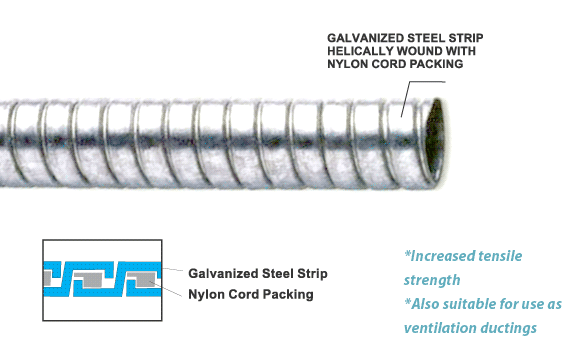

*Square-locked galvanized steel strip construction
*With Nylon cord packing for smooth surface and air tightness
*High tensile strength *Also suitable for use as ventilation ductings

Constructed by square locking galvanized steel strip:
*Offers good mechanical protection and high tensile strength.
*With excellent crush characteristics.
*Offering a certain degree of air tightness
Applications:
Industrial wirings, appliances, automotive wire & cable sleeving, machineries, wire conduits, underfloor applications – computer/floor boxes

Also suitable for ventilation applications.
Related Products:
Square locked type galvanized steel conduit (without packing) for more flexibility >>> Model YF-503

With PVC covering for liquid-tight applications >>> Model SM-602

Type	Trade Size	I.D. (mm)		O.D. (mm)		Min. Bending Radius (mm)	Meter/Coil
Type	Trade Size	Min.	Max.	Min.	Max.	Min. Bending Radius (mm)	Meter/Coil
YF-50203	3/8"	12.3	12.8	15.6	15.8	60	50
YF-50204	1/2"	15.8	16.2	19.5	19.9	80	50
YF-50206	3/4"	20.8	21.3	24.7	25.2	100	30
YF-50210	1"	26.4	27.1	31.6	32.1	150	30
YF-50212	1-1/4"	35.0	35.5	40.0	40.5	180	20
YF-50214	1-1/2"	40.1	40.6	45.8	46.3	220	20
YF-50220	2"	50.5	51.2	57.3	58.0	250	15

*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
