Wire Over-Braided Flexible Conduit ( SM-703 )
typically used for machineries cable protection

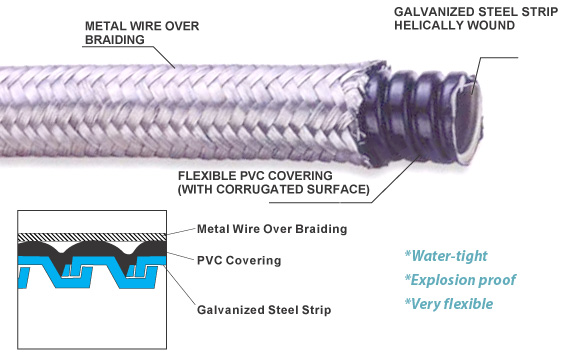

*Galvanized steel helically wound, square locked type construction
 with PVC coating and wire over-braid.
*1/4"~4" trade size  *Water-tight *Explosion proof

EXplosion proof flexible conduits MADE FROM TYPE YF-603 (square-locked) CONDUIT WITH WIRE OVER-BRAID:

*Wire over-braiding provide more abrasion resistant and EMI screening.
*Explosion proof.
*Durable and long life.
*Inner core made from  galvanized steel strip.
*Square locked construction for more flexibility.
*Resists hot metal  splashes
*PVC covering provides water & moisture protections for the electrical conductors



Applications:

Suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening and water tightness are required.

Related Products:

Flexible conduits without wire over-braid. >>> Model YF-503


 Liquid tight flexible conduits without wire over-braid. >>> Model SM-602
Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
SM-70302 1/4" 9.7

10.2

11.4 11.7 60 100
SM-70303 3/8" 12.3

12.8

17.4 17.8 70 50
SM-70304 1/2" 15.8 16.2 21.3 21.7 90 50
SM-70306 3/4" 20.8 21.3 26.6 27.0 110 50
SM-70310 1" 26.4 27.1 33.6 34.1 150 50
SM-70312 1-1/4" 35.0 35.5 42.2 42.7 175 30
SM-70314 1-1/2" 40.1 40.6 48.2 48.8 200 25
SM-70320 2" 50.5 51.2 58.7 59.4 230 20
SM-70324 2-1/2" 62.9 63.9 75.1 76.1 250 10
SM-70330 3" 77.0 78.0 90.0 91.0 300 10
SM-70340 4" 99.6 101.6 112.2 113.4 500 10
*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
