Wire Over-Braided Flexible Conduit ( SM-701 )

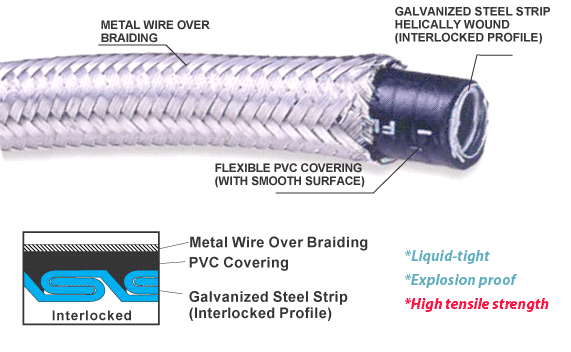

MADE FROM INTERLOCKED LIQUID-TIGHT WITH WIRE OVER-BRAID:

*Wire over-braiding provides more abrasion resistant, EMI screening and resistance to hot metal splashes.
*Explosion proof. Liquid-tight.
*Durable and long life.
*High tensile strength.
*Inner core made from galvanized steel strip.
*Interlocked construction for more tensile strength.

Applications:

Suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening are required. Also suitable for machineries wirings which are subject to constant bending, and vibrations.

Related Products:

Liquid tight flexible conduits without wire over-braid. >>> Model YF-601

Type	Trade Size	I.D. (mm)		O.D. (mm)		Min Bending Radius (mm)	Meter/Coil
Type	Trade Size	MIN.	MAX.	MIN.	MAX.	Min Bending Radius (mm)	Meter/Coil
SM-70103	3/8"	12.3	12.8	18.0	18.3	50	50
SM-70104	1/2"	15.8	16.2	22.0	22.5	60	50
SM-70106	3/4"	20.8	21.3	26.5	27.0	75	30
SM-70110	1"	26.4	27.1	34.0	34.5	100	30
SM-70112	1-1/4"	35.0	35.5	42.8	43.5	135	20
SM-70114	1-1/2"	40.1	40.6	48.5	49.0	160	20
SM-70120	2"	50.5	51.2	61.3	62.0	190	15

*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
